Original 1997 New Idea Operator's Manual 5400 Disc Mowers 987015D TB9
Original 1997 New Idea Operator's Manual 5400 Disc Mowers 987015D TB9
Regular price
$17.00 USD
Regular price
Sale price
$17.00 USD
Unit price
/
per
See pics for condition.

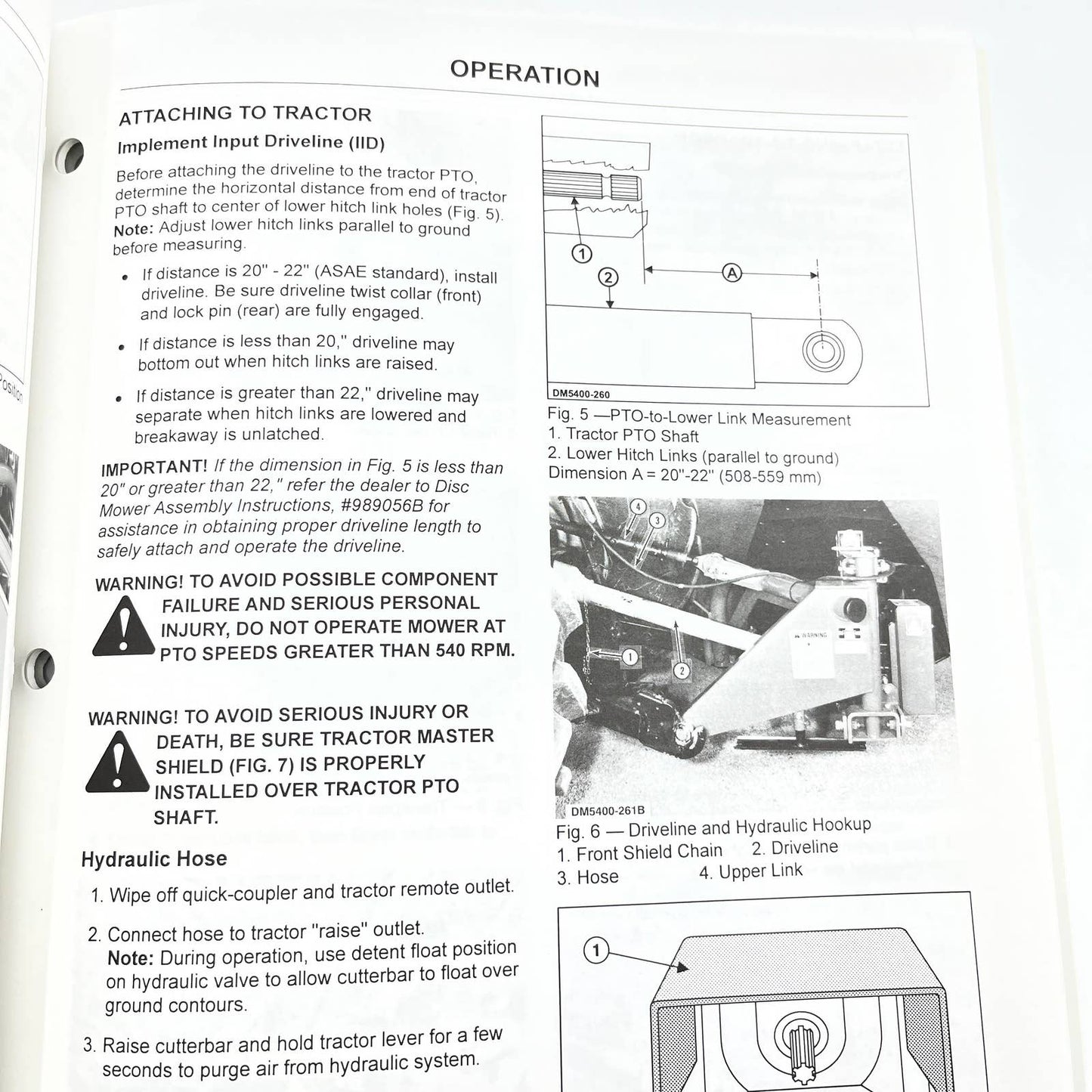

Original 1997 New Idea Operator's Manual 5400 Disc Mowers 987015D TB9
ATTACHING TO TRACTOR
Implement Input Driveline (ID)
Before attaching the driveline to the tractor PTO, determine the horizontal distance from end of tractor
PTO shaft to center of lower hitch link holes (Fig. 5).
Note: Adjust lower hitch links parallel to ground before measuring.
• If distance is 20" - 22" (ASAE standard), install driveline. Be sure driveline twist collar (front) and lock pin (rear) are fully engaged.
• If distance is less than 20," driveline may bottom out when hitch links are raised.
• If distance is greater than 22," driveline may separate when hitch links are lowered and breakaway is unlatched.
IMPORTANT! If the dimension in Fig. 5 is less than 20" or greater than 22," refer the dealer to Disc Mower Assembly Instructions, #989056B for assistance in obtaining proper driveline length to safely attach and operate the driveline.
