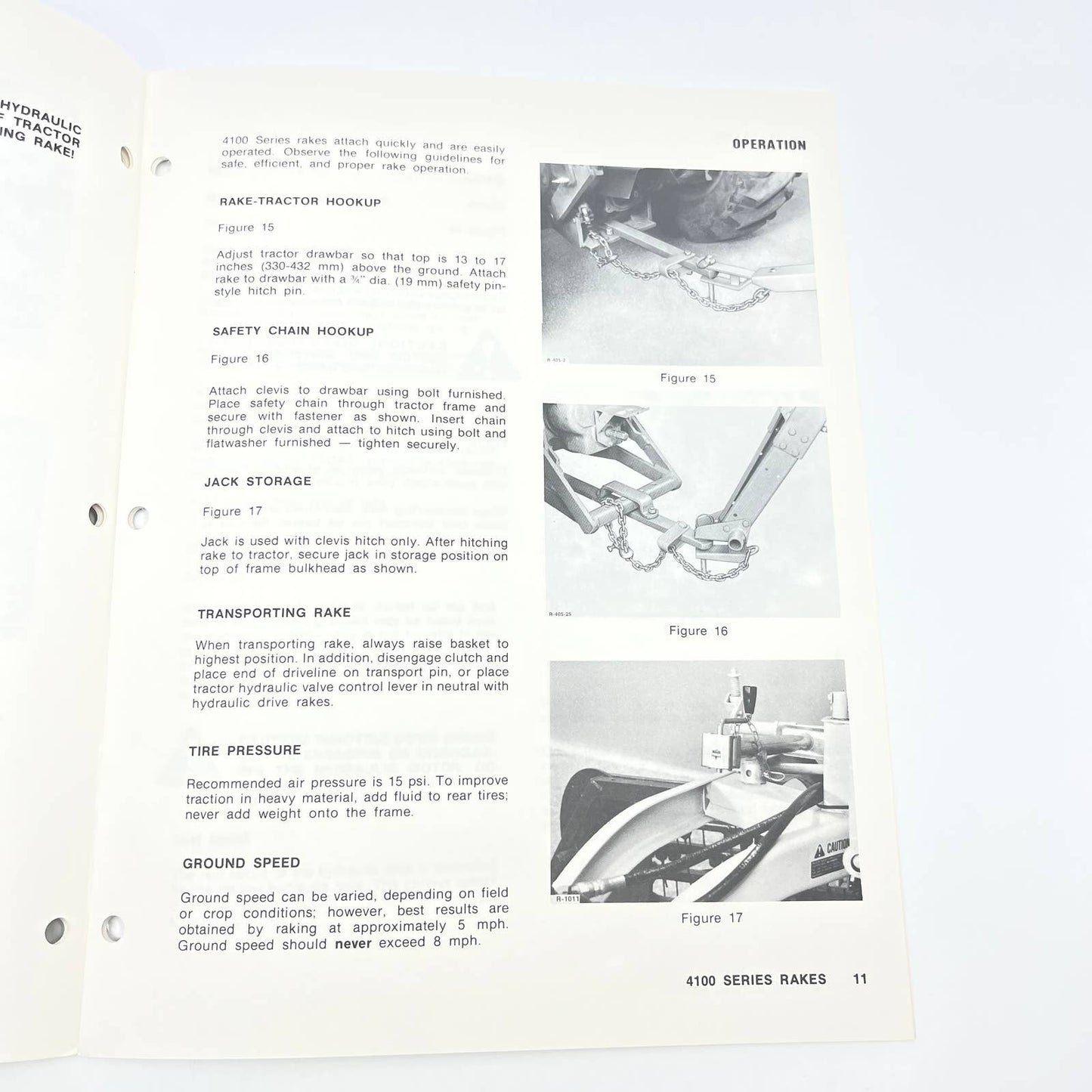

Original 1990 New Idea Operator's Manual 4100 Series Parallel Bar Rakes TB9
RAKE-TRACTOR HOOKUP
Figure 15
Adjust tractor drawbar so that top is 13 to 17 inches (330-432 mm) above the ground. Attach rake to drawbar with a ¾" dia. (19 mm) safety pin-style hitch pin
SAFETY CHAIN HOOKUP
Figure 16
Attach clevis to drawbar using bolt furnished.
Place safety chain through tractor frame and secure with fastener as shown. Insert chain through clevis and attach to hitch using bolt and flatwasher furnished - tighten securely.
JACK STORAGE
Figure 17
Jack is used with clevis hitch only. After hitching rake to tractor, secure jack in storage position on top of frame bulkhead as shown.
TRANSPORTING RAKE
When transporting rake, always raise basket to highest position. In addition, disengage clutch and place end of driveline on transport pin, or place tractor hydraulic valve control lever in neutral with hydraulic drive rakes.
