Original 1988 New Idea Parts Catalog DM-51 Disc Mowers 526 527 528 986799 TB9

See pics for condition.

Original 1988 New Idea Parts Catalog DM-51 Disc Mowers 526 527 528 986799 TB9


PARTS CATALOG
DM-51
(986799)
FOR
NEW IDEA
DISC MOWERS
526 - 5 Ft. 6 In.
527 - 6 Ft. 8 In.
528 - 7 Ft. 10 In.
FEBRUARY 1988

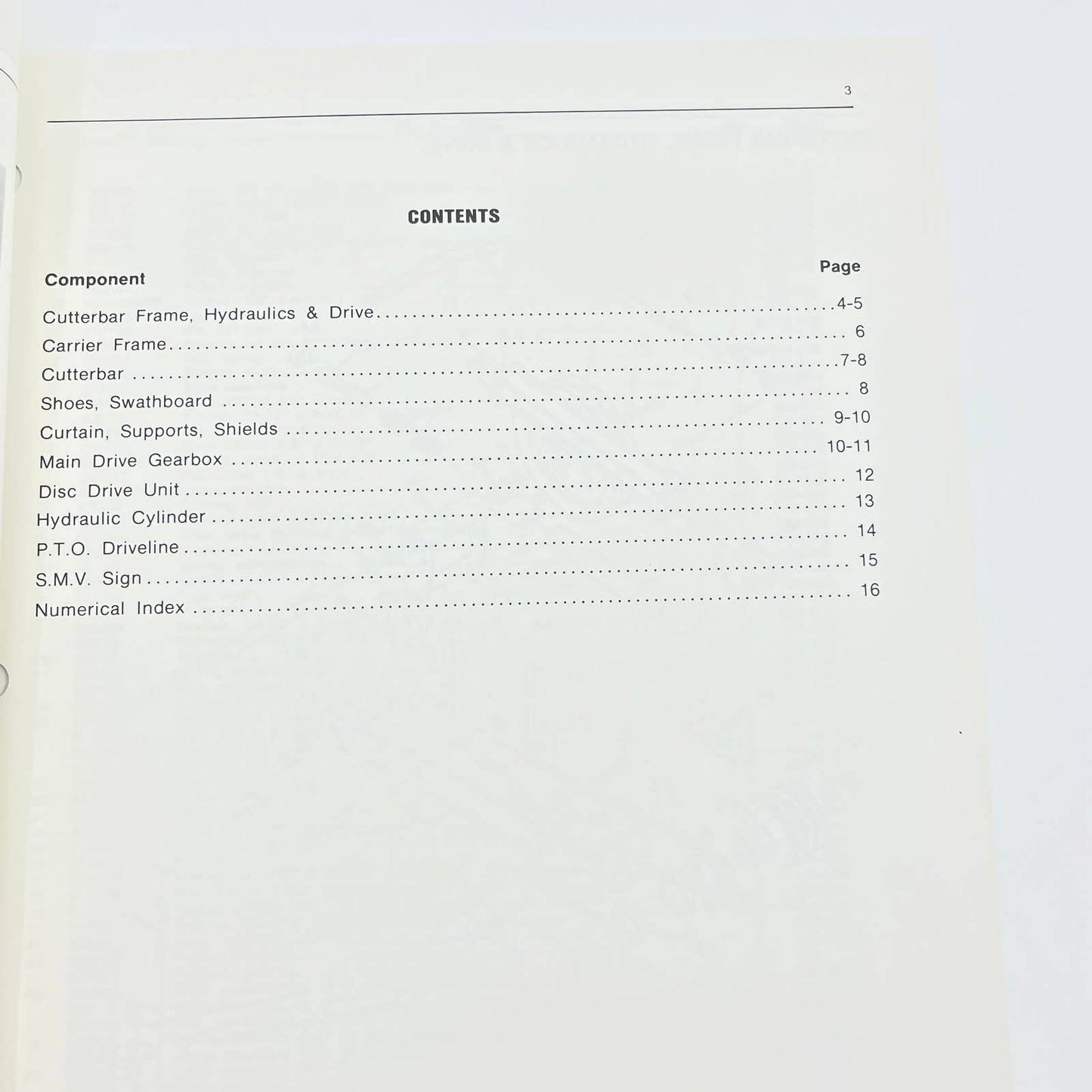

CONTENTS
Component
Cutterbar Frame, Hydraulics & Drive.
Carrier Frame.
Cutterbar ..
Shoes, Swathboard Curtain, Supports, Shields Main Drive Gearbox Disc Drive Unit ..
Hydraulic Cylinder
P.T.O. Driveline.
S.M.V. Sign..
Numerical Index
Page
...4-5
.. 6
..7-8
... 8
.. 9-10
. 10-11
.... 12
.... 13
... 14
•. 15
.16
