Original 1987 New Idea Parts Catalog CU 13 666-6ft 668-7.5ft Pickup Unit TB9
Original 1987 New Idea Parts Catalog CU 13 666-6ft 668-7.5ft Pickup Unit TB9
Regular price
$17.00 USD
Regular price
Sale price
$17.00 USD
Unit price
/
per
See pics for condition.

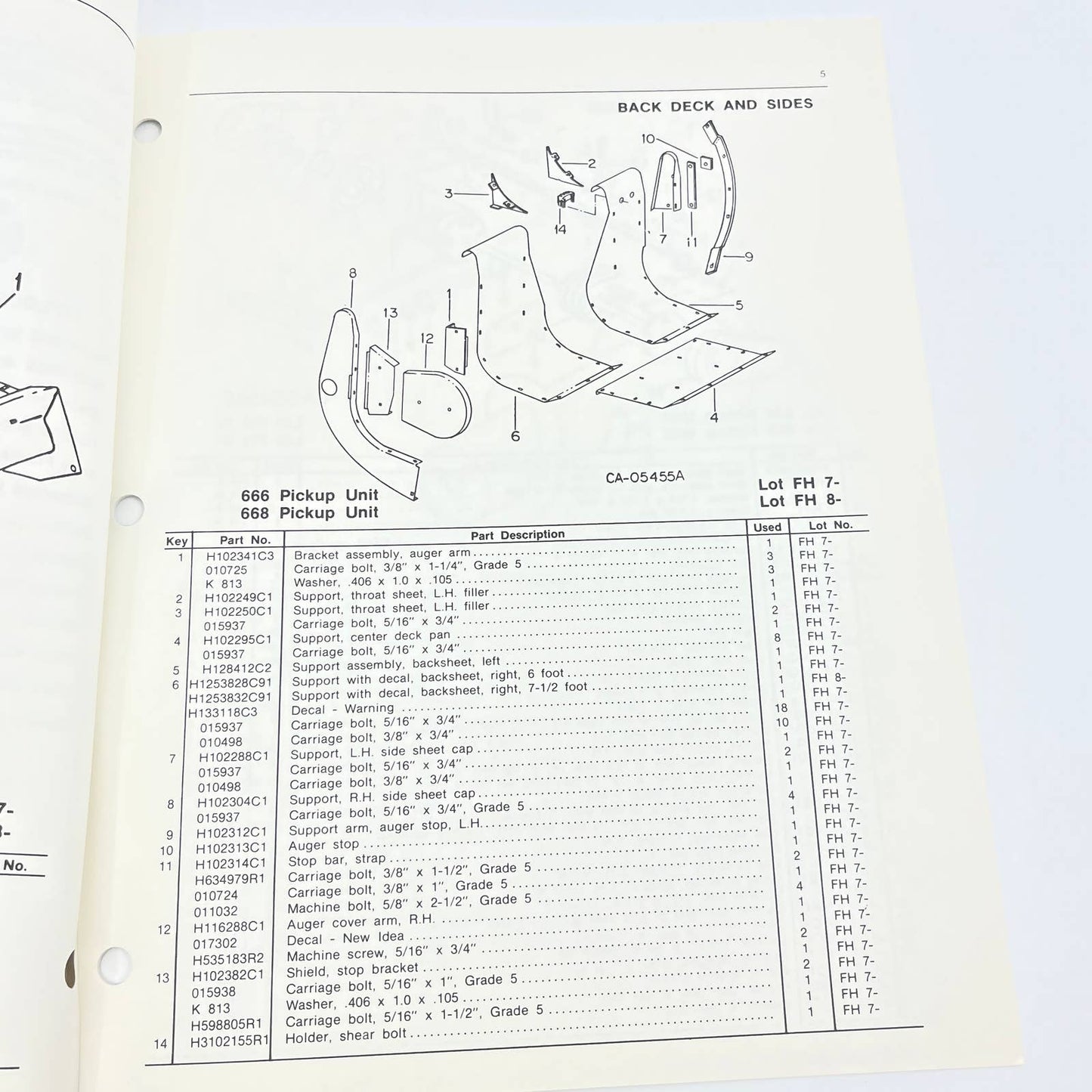

Original 1987 New Idea Parts Catalog CU 13 666-6ft 668-7.5ft Pickup Unit TB9
666 Pickup Unit
668 Pickup Unit
Part Description
Bracket assembly, auger arm...
Carriage bolt, 3/8" × 1-1/4", Grade 5
Washer, 406 × 1.0 x .105
Support, throat sheet, L.H. filler
Support, throat sheet, L.H. filler
Carriage bolt, 5/16" × 3/4"
Support, center deck pan
Carriage bolt. 5/16" × 3/4"
Support assembly, backsheet, left
Support with decal, backsheet, right, 6 foot
Support with decal, backsheet, right, 7-1/2 foot
Decal - Warning
Carriage bolt, 5/16" × 3/4"
Carriage bolt, 3/8" × 3/4"
Support, L.H. side sheet cap
Carriage bolt, 5/16" × 3/4"
Carriage bolt, 3/8" × 3/4"
Support, R.H. side sheet cap..
Carriage bolt, 5/16" × 3/4", Grade Support arm, auger stop, L.H.
Auger stop
Stop bar, strap
Carriage bolt, 3/8" × 1-1/2", Grade 5
Carriage bolt, 3/8" × 1", Grade 5
Machine bolt, 5/8" × 2-1/2", Grade 5
Auger cover arm, R.H
Decal - New Idea
