Original 1987 New Idea Operator's Manual 873N 873W 874N Crop Head TB9

Original 1987 New Idea Operator's Manual 873N 873W 874N Crop Head TB9

Regular price $17.00 USD
Regular price Sale price $17.00 USD
Sale Sold out
Tax included.
See pics for condition.

Original 1987 New Idea Operator's Manual 873N 873W 874N Crop Head TB9

873N & 873W
3 ROW CROP HEADS
and 874N
4 ROW CROP HEAD
EFFECTIVE LOT NO. US 419

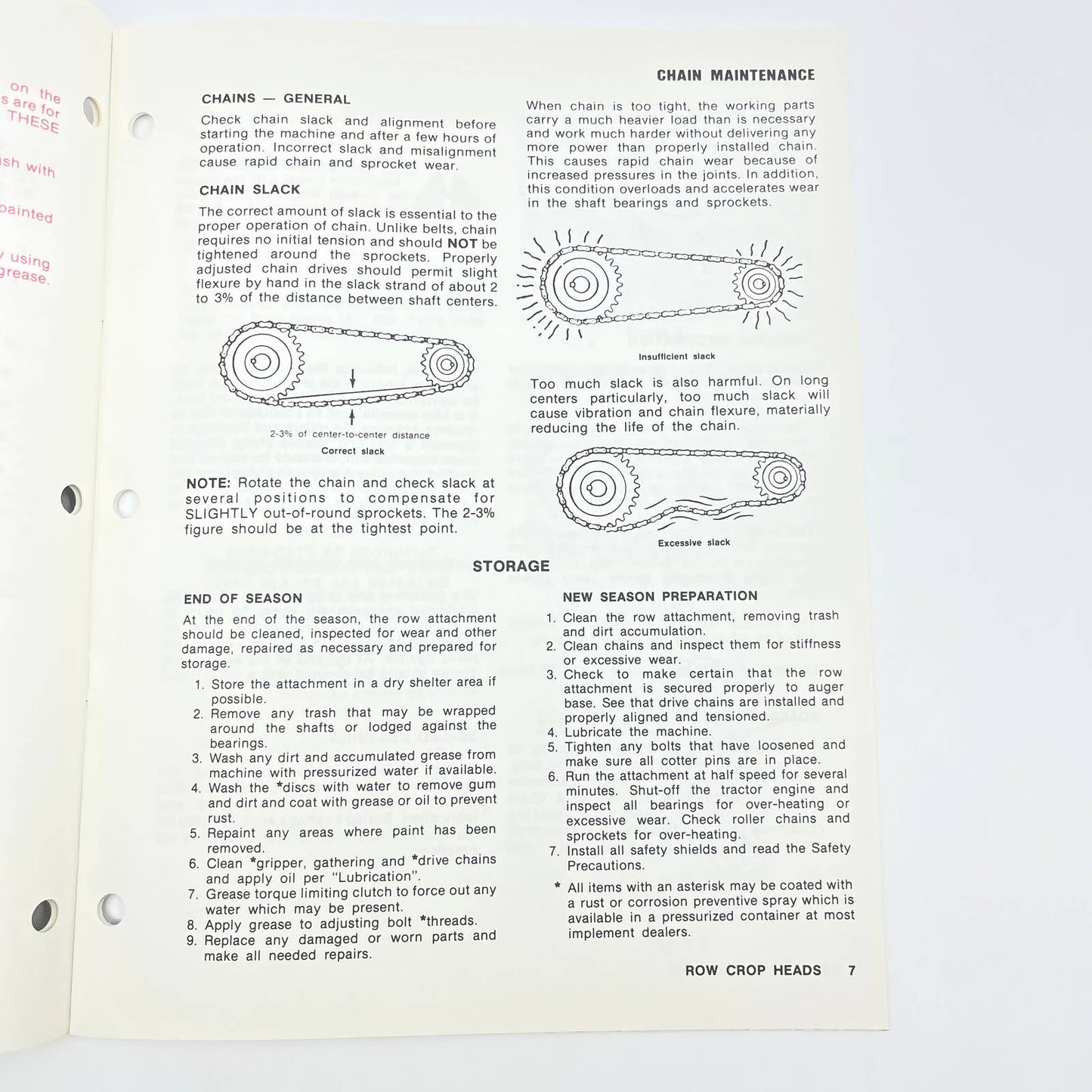

CHAINS - GENERAL
Check chain slack and alignment before starting the machine and after a few hours of operation. Incorrect slack and misalignment cause rapid chain and sprocket wear.
CHAIN SLACK
The correct amount of slack is essential to the proper operation of chain. Unlike belts, chain requires no initial tension and should NOT be tightened around the sprockets. Properly adiusted chain drives should permit slight flexure by hand in the slack strand of about 2 to 3% of the distance between shaft centers.
CHAIN MAINTENANCE
When chain is too tight, the working parts carry a much heavier load than is necessary and work much harder without delivering any more power than properly installed chain.
