See pics for condition.
Original 1984 New Idea Repair Parts List US-33 710 Combine 712 Edible Bean Harvester TB9
REPAIR PARTS LIST
No. US-33
FOR
AVCO
NEW IDEA
FARM EQUIPMENT
No. 710 COMBINE
No. 712 Edible Bean Harvester
No. 711 Grain Platform
No. 713 Grain Platform
No. 715 Grain Platform
REVISED OCTOBER 1984

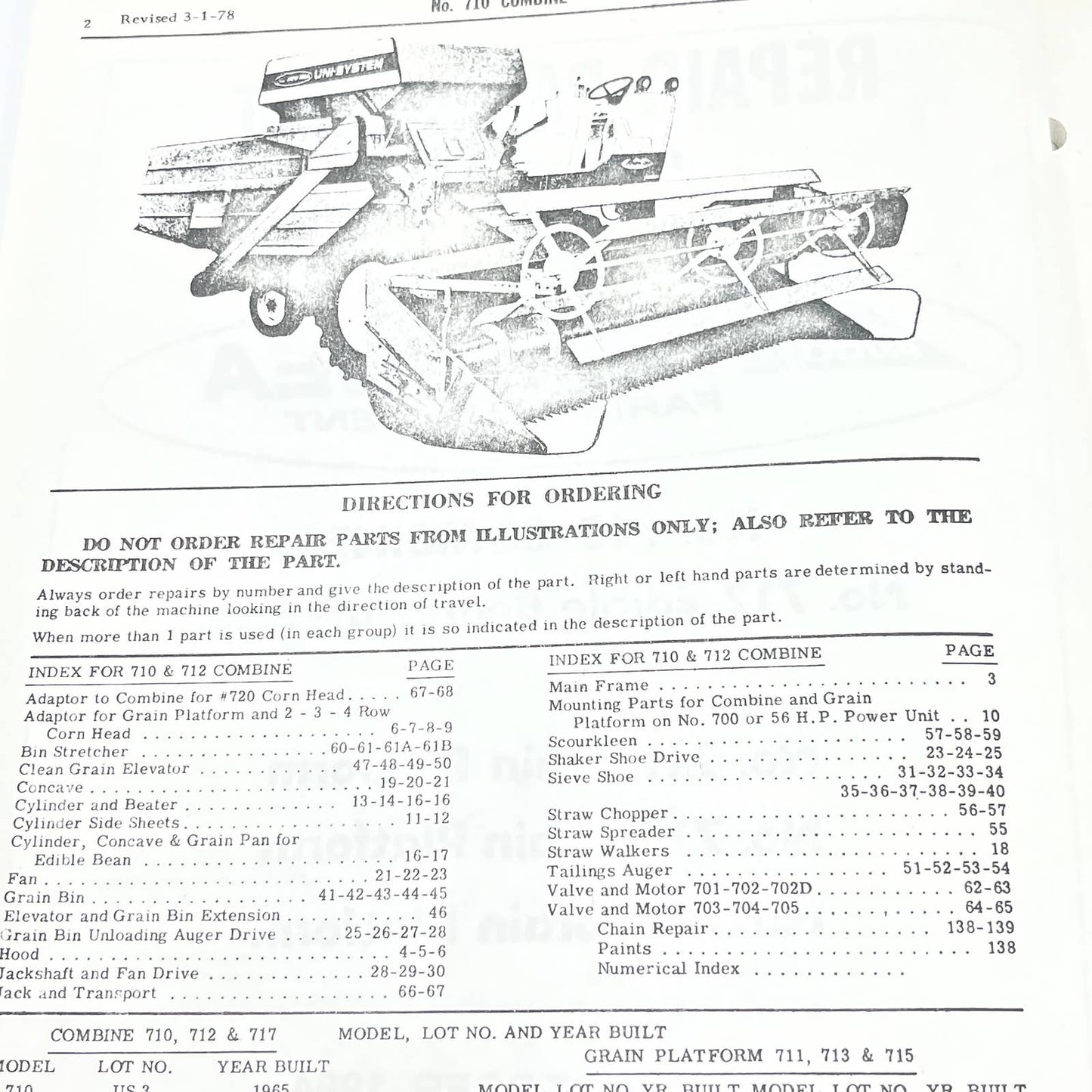

INDEX FOR 710 & 712 COMBINE
PAGE
Adaptor to Combine for #720 Corn Head. . . .
•67-68
Adaptor for Grain Platform and 2 - 3 - 4 Row
Corn Head . .
.. 6-7-8-9
Bin Stretcher
.60-61-61A-61B
Clean Grain Elevator
47-48-49-50
Concave . . . . .
.. 19-20-21
Cylinder and Beater
13-14-16-16
Cylinder Side Sheets.
11-12
Cylinder, Concave & Grain Pan for
Edible Bean
.... 16-17
Fan.
.21-22-23
Grain Bin.
.. . . . ... 41-42-43-44-45
Elevator and Grain Bin Extension .
... ..
46
Grain Bin Unloading Auger Drive
25-26-27-28
Hood . . . . . . . . .
.... 4-5-6
Jackshaft and Fan Drive
.28-29-30
lack and Transport
.. . . 66-67
