Original 1981 New Idea Repair Parts List 813 815 820 UNI-FAS-TACH Platforms TB9

See pics for condition.

Original 1981 New Idea Repair Parts List 813 815 820 UNI-FAS-TACH Platforms TB9

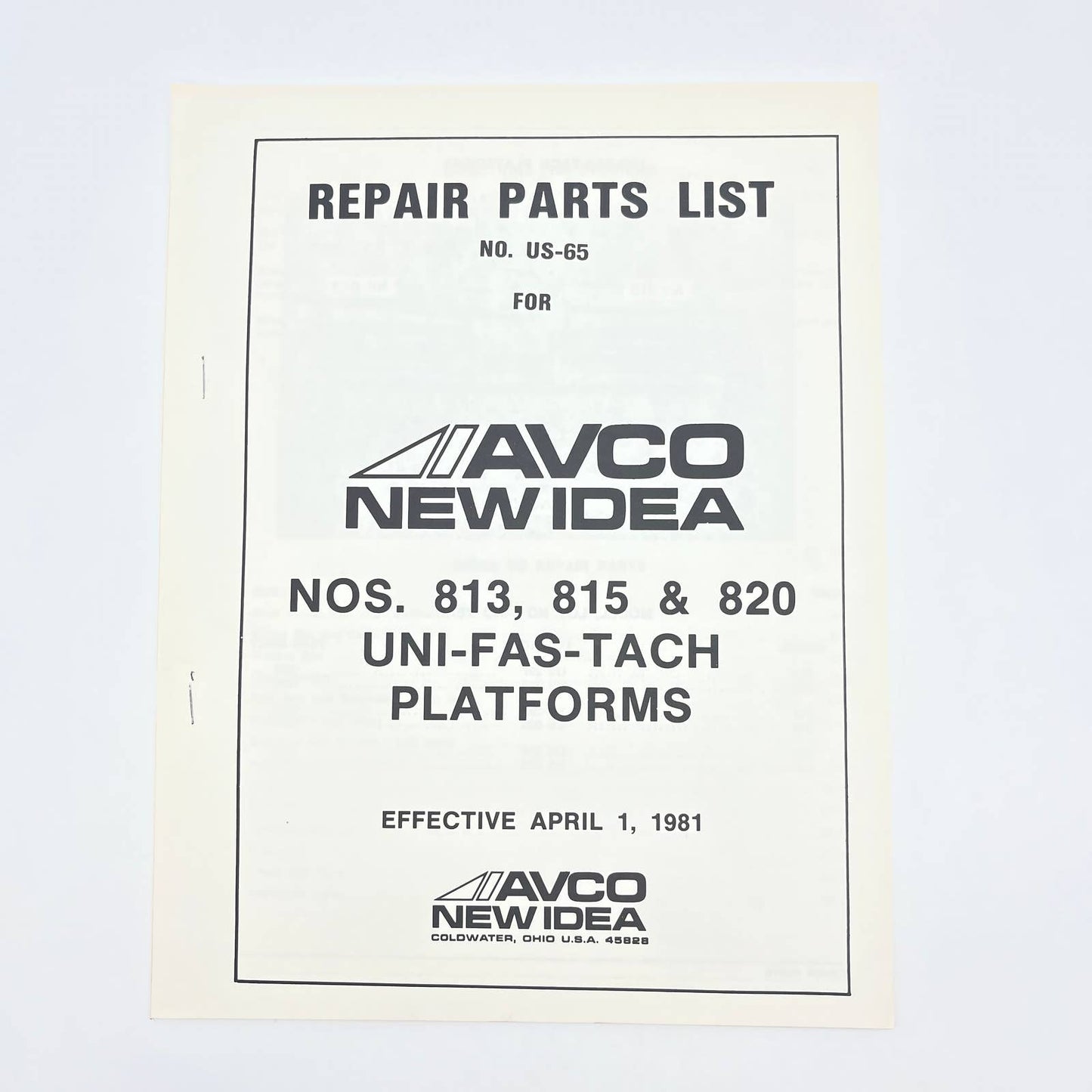

REPAIR PARTS LIST
NO. US-65
FOR
MAVCO
NEW IDEA
NOS. 813, 815 & 820
UNI-FAS-TACH
PLATFORMS
EFFECTIVE APRIL 1, 1981
MAVCO
NEWIDEA
COLDWATER, OHIO U.S.A. 45828

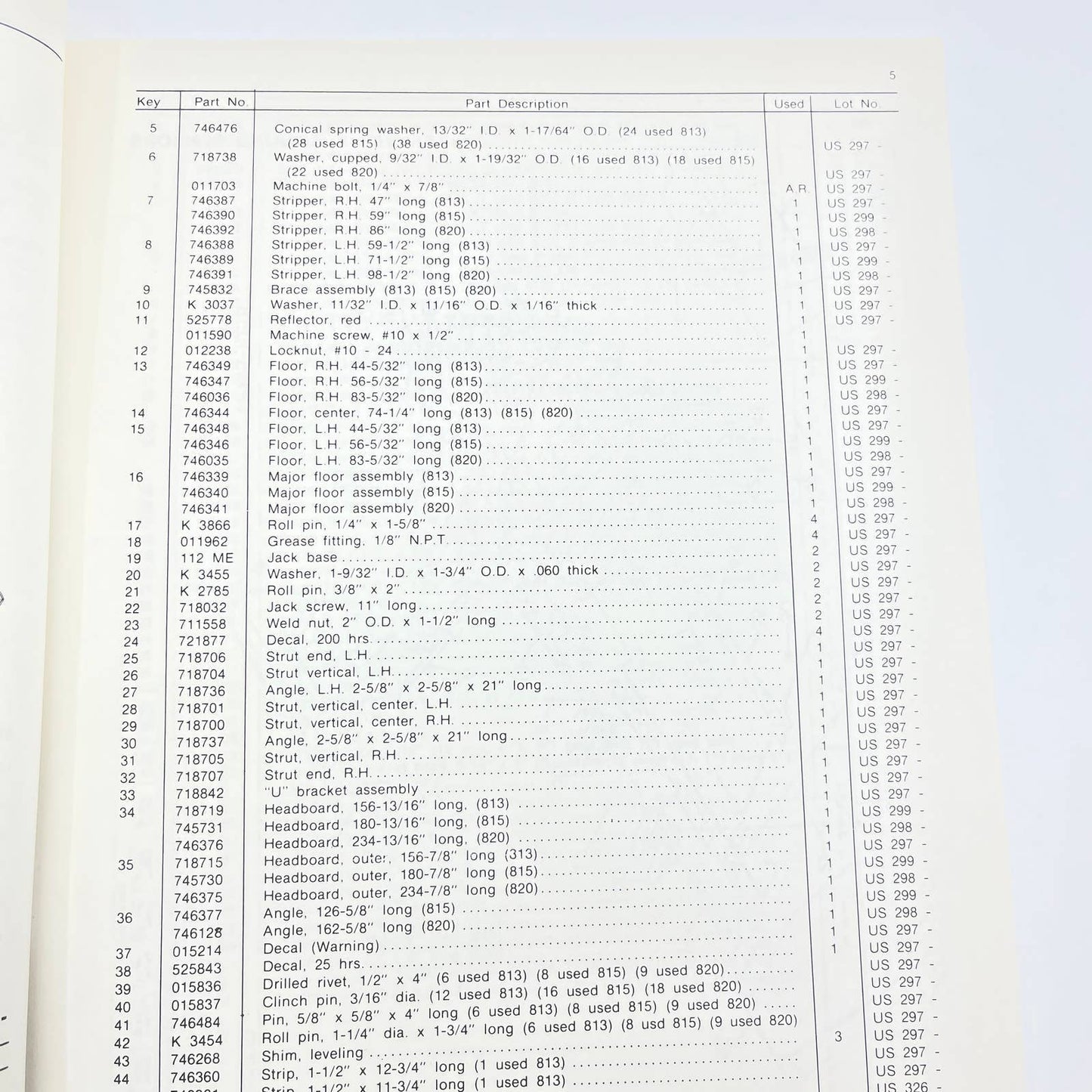

Conical spring washer. 13/32 I.D x 1-17/64" O.D. (24 used 813)
(28 used 815) (38 used 820)
US 297
Washer. cupped, 9/32" I.D. x 1-19/32 O.D. (16 used 813) (18 used 815)
(22 used 820) .
US 297
Machine bolt, 1/4 × 7/8"
A.R.
US 297
Stripper, R.H. 47" long (813)
US 297
Stripper, R.H. 59" long (815)
US 299 -
Stripper. R.H. 86" long (820)
US 298
Stripper, L.H. 59-1/2 long (813)
US 297
Stripper, L.H. 71-1/2" long (815)
US 299 -
Stripper. L.H. 98-1/2" long (820)
US 298 -
Brace assembly (813) (815) (820)
US 297
Washer, 11/32" I.D. x 11/16' O.D. x 1/16' thick
US 297
Reflector, red ..
US 297 -
Machine screw. #10 × 1/2*
Locknut. #10 - 24 .
US 297 -
Floor. R.H. 44-5/32" long (813)
US 297 -
