Original 1978 New Idea No. 516A Three Point Hitch 7" Rotary Snow Plow Manual TB9
Original 1978 New Idea No. 516A Three Point Hitch 7" Rotary Snow Plow Manual TB9
Regular price
$17.00 USD
Regular price
Sale price
$17.00 USD
Unit price
per
Tax included.
Couldn't load pickup availability
See pics for condition.

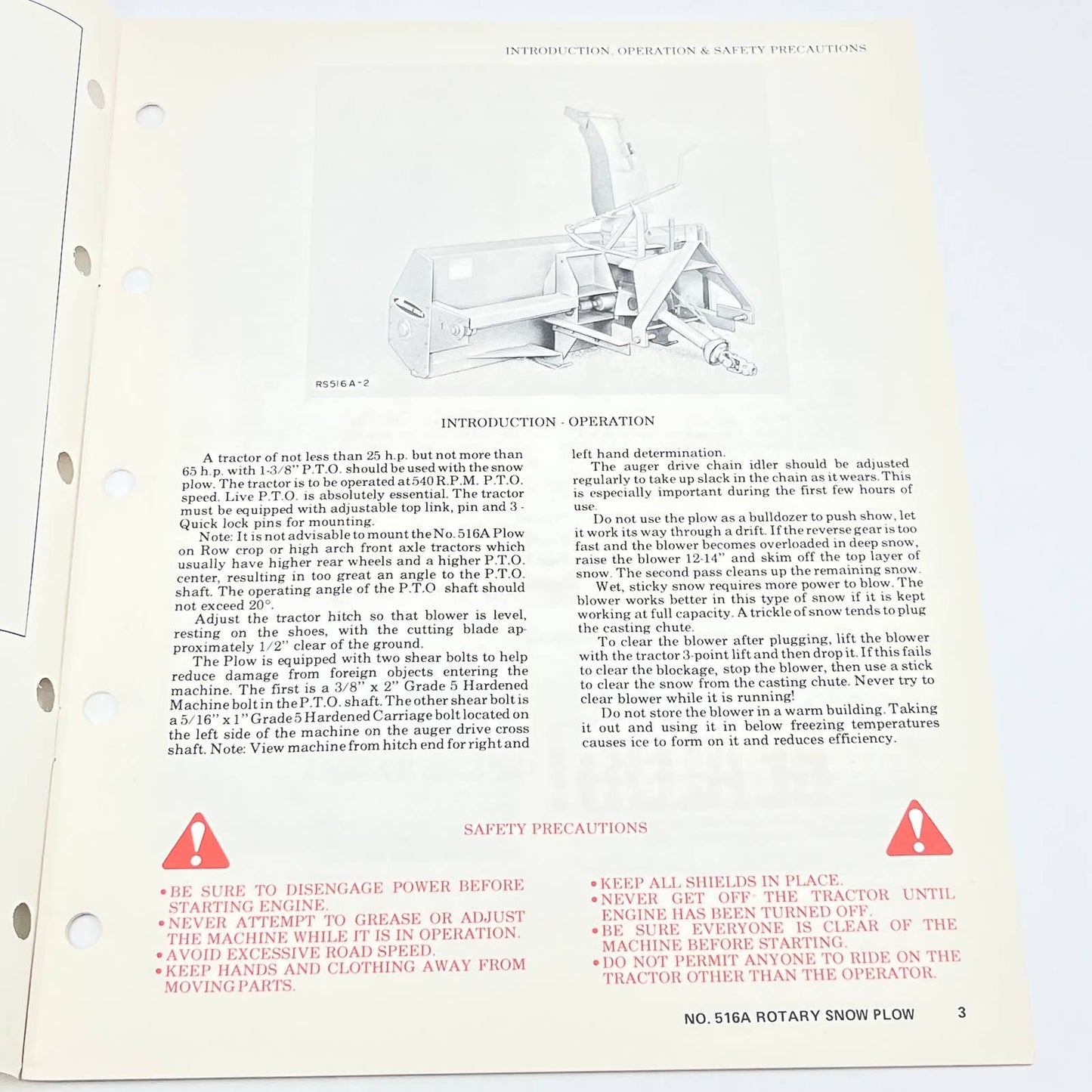

Original 1978 New Idea No. 516A Three Point Hitch 7" Rotary Snow Plow Operator's Manual TB9
INTRODUCTION - OPERATION
A tractor of not less than 25 h.p. but not more than 65 h.p. with 1-3/8" P.T.O. should be used with the snow plow. The tractor is to be operated at540 R.P.M. P.T.O. speed. Live P.T.O. is absolutely essential. The tractor must be equipped with adjustable top link, pin and 3 -
Quick lock pins for mounting.
Note: It is not advisable to mount the No. 516A Plow on Row crop or high arch front axle tractors which usually have higher rear wheels and a higher P.T.O. center, resulting in too great an angle to the P.T.O. shaft. The operating angle of the P.T.O shaft should not exceed 20°.
Adiust the tractor hitch so that blower is level, resting on the shoes, with the cutting blade ap proximately 1/2" clear of the ground.
Original 1978 New Idea No. 516A Three Point Hitch 7" Rotary Snow Plow Operator's Manual TB9
INTRODUCTION - OPERATION
A tractor of not less than 25 h.p. but not more than 65 h.p. with 1-3/8" P.T.O. should be used with the snow plow. The tractor is to be operated at540 R.P.M. P.T.O. speed. Live P.T.O. is absolutely essential. The tractor must be equipped with adjustable top link, pin and 3 -
Quick lock pins for mounting.
Note: It is not advisable to mount the No. 516A Plow on Row crop or high arch front axle tractors which usually have higher rear wheels and a higher P.T.O. center, resulting in too great an angle to the P.T.O. shaft. The operating angle of the P.T.O shaft should not exceed 20°.
Adiust the tractor hitch so that blower is level, resting on the shoes, with the cutting blade ap proximately 1/2" clear of the ground.
