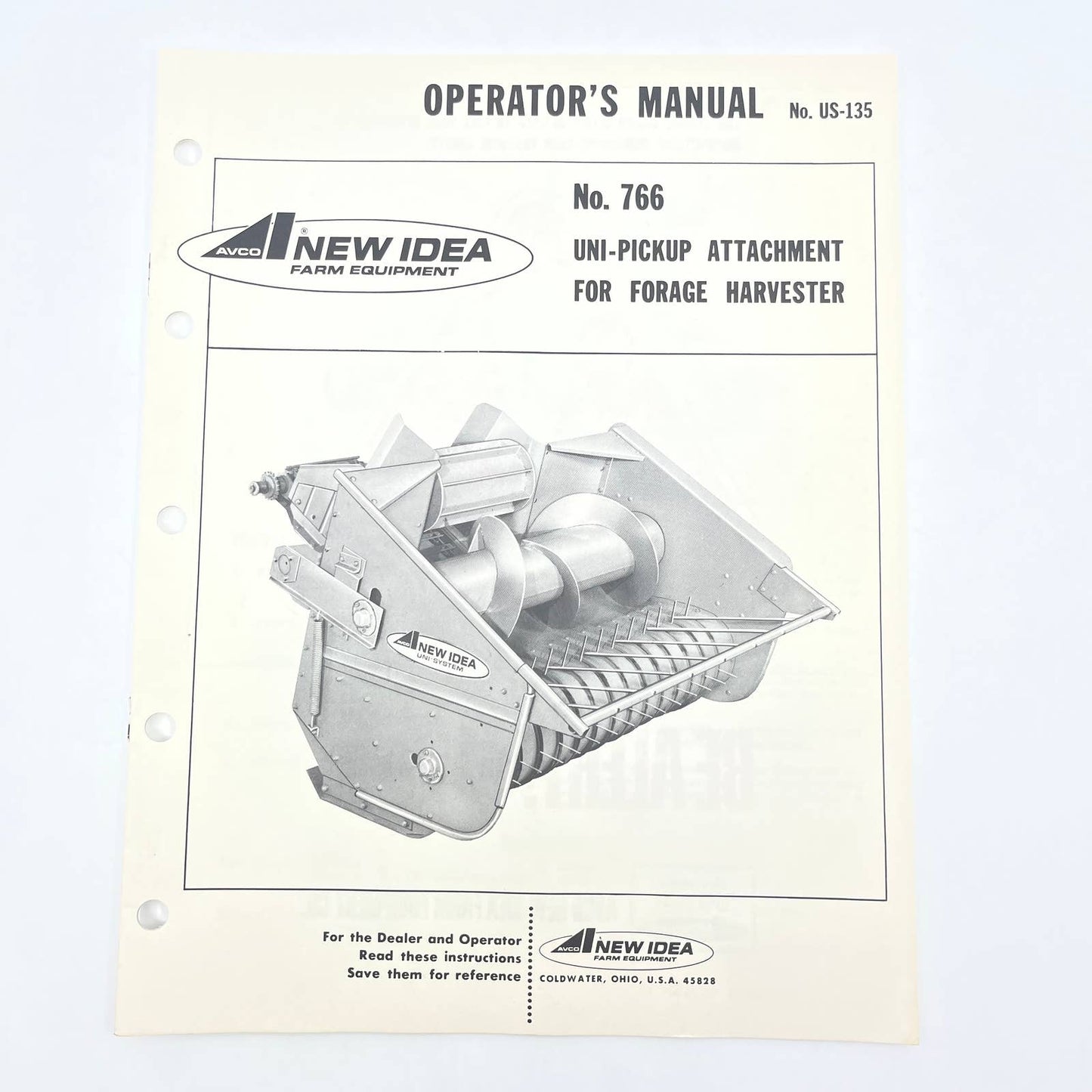

Original 1976 New Idea Operator's Manual 766 Uni-Pickup Attachment for Forest Harvester US-135 TB9

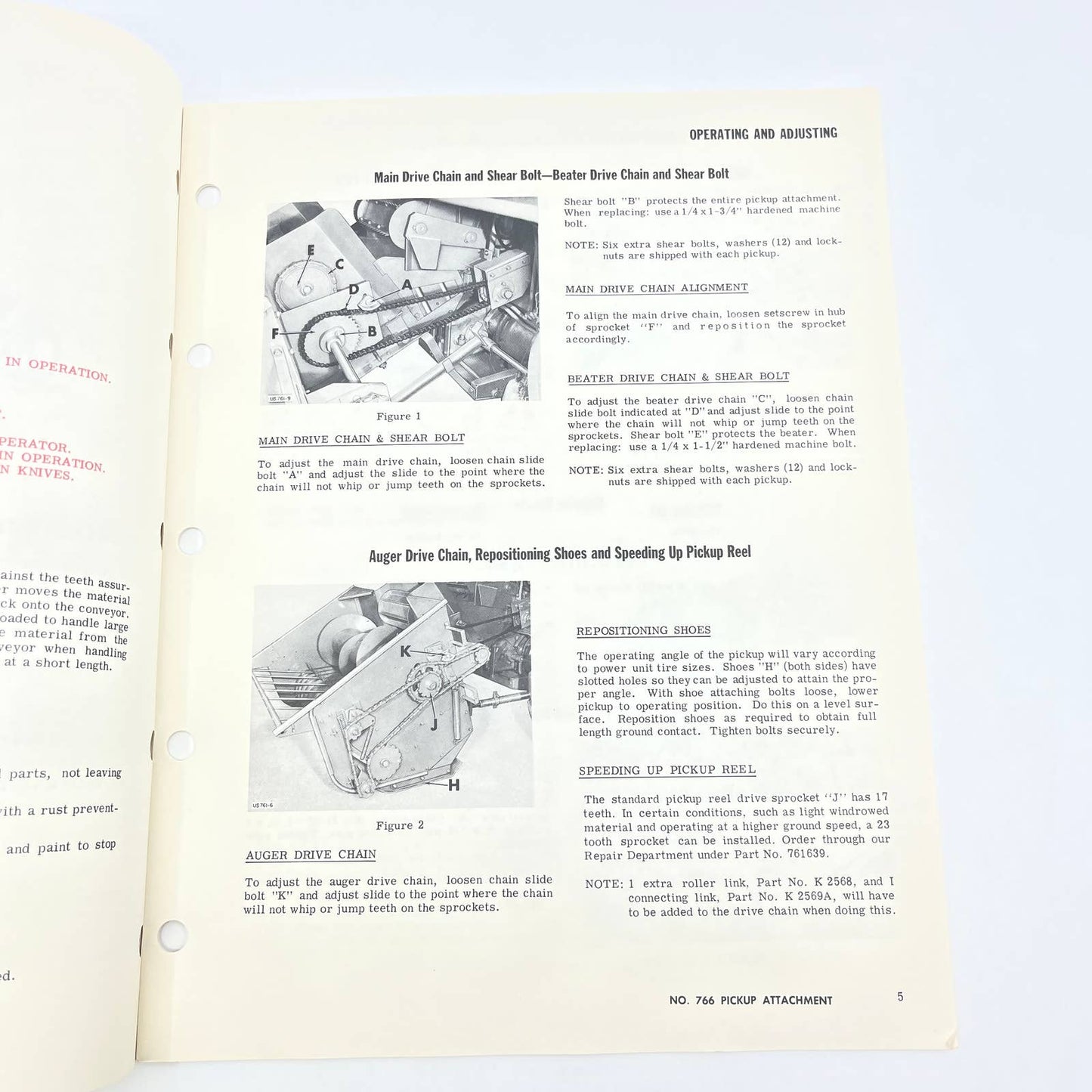

OPERATING AND ADJUSTING
Main Drive Chain and Shear Bolt-Beater Drive Chain and Shear Bolt
1761-9
Shear bolt "B' protects the entire pickup attachment.
When replacing: use a 1/4 x1-3/4" hardened machine
DOLL
NOTE: Six extra shear bolts, washers (12) and locknuts are shipped with each pickup.
MAIN DRIVE CHAIN ALIGNMENT
To align the main drive chain, loosen setscrew in hub of sprocket
66991
and reposition the sprocket
accordingly.
BEATER DRIVE CHAIN & SHEAR BOLT
Figure 1
MAIN DRIVE CHAIN & SHEAR BOLT
To adiust the main drive chain, loosen chain slide bolt "A' and adjust the slide to the point where the chain will not whip or jump teeth on the sprockets.
To adiust the beater drive chain "C", loosen chain slide bolt indicated at "D' and adjust slide to the point where the chain will not whip or jump teeth on the sprockets. Shear bolt "E" protects the beater.
