Original 1976 New Idea 516A 3 Point Hitch 7' Rotary Snow Plow RS509 Manual TB9
Original 1976 New Idea 516A 3 Point Hitch 7' Rotary Snow Plow RS509 Manual TB9
Regular price
$17.00 USD
Regular price
Sale price
$17.00 USD
Unit price
per
Tax included.
Couldn't load pickup availability
See pics for condition.

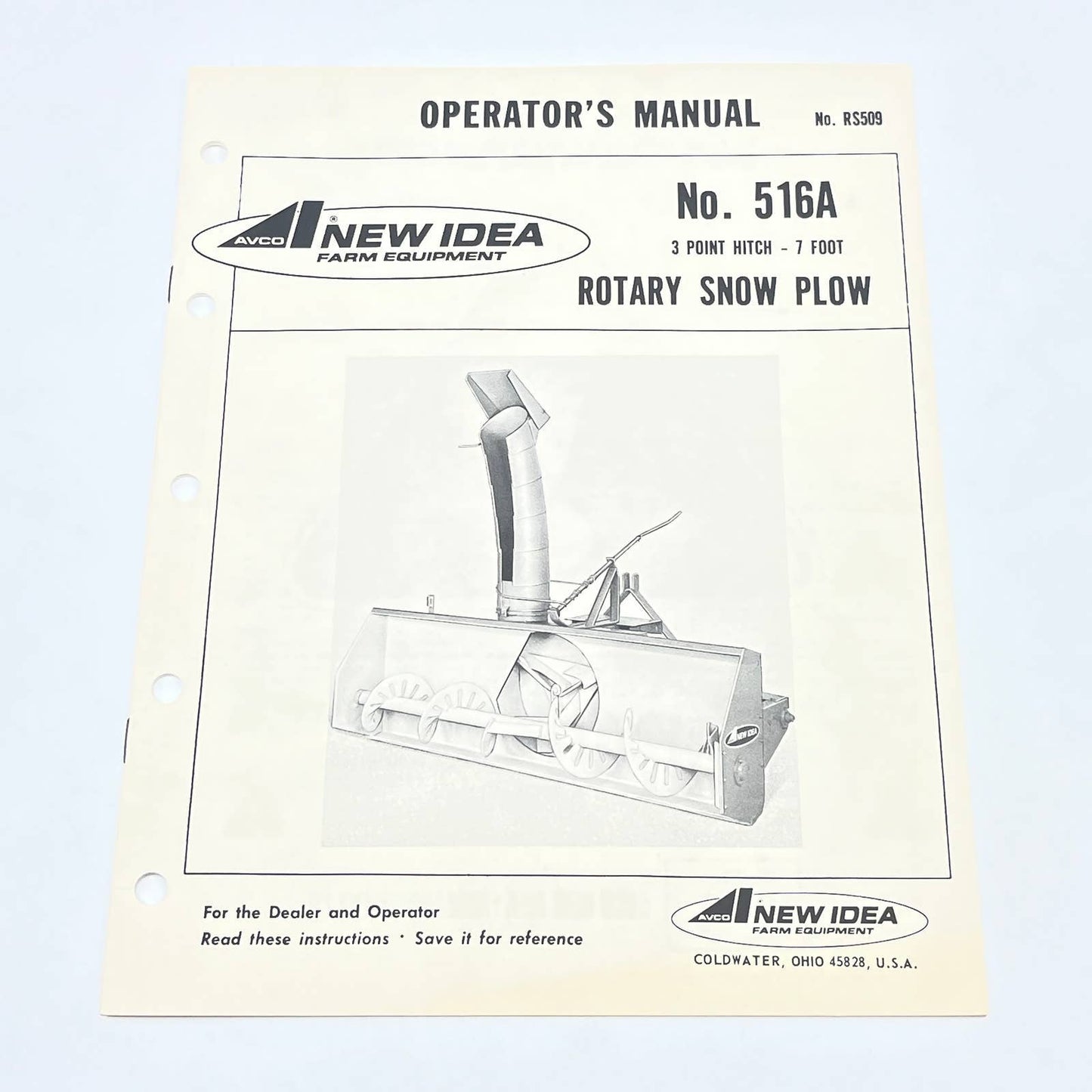

Original 1976 New Idea No. 516A 3 Point Hitch 7' Rotary Snow Plow RS509 Operator's Manual TB9

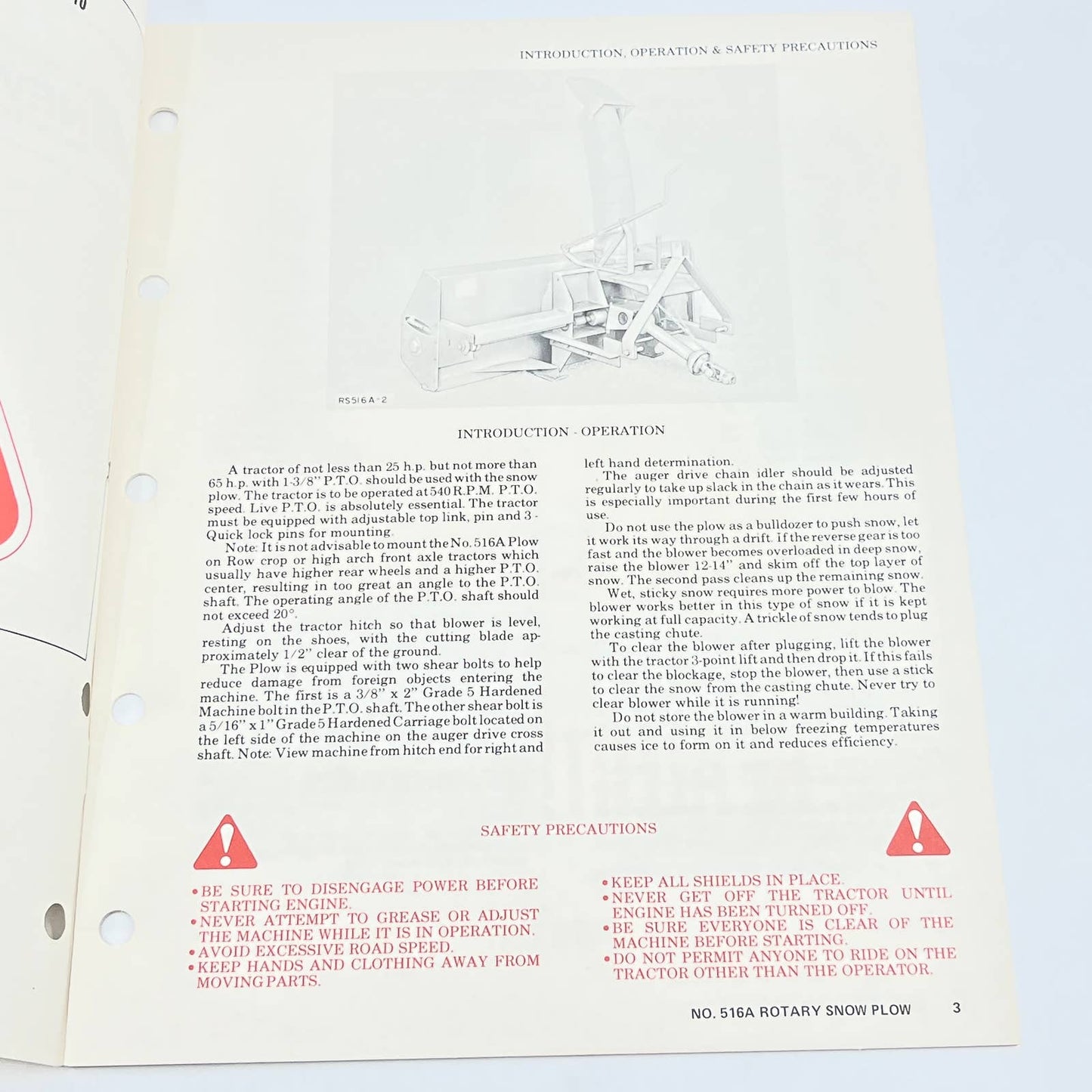

h.p. with 1-3/8" P.T.O. should be used with the snow plow. The tractor is to be operated at540 R.P.M. P.T.O. speed. Live P.T.O. is absolutely essential. The tractor must be equipped with adjustable top link, pin and 3 -
Quick lock pins for mounting.
Note: It is not advisable to mount the No. 516A Plow on Row crop or high arch front axle tractors which usually have higher rear wheels and a higher P.T.O. center, resulting in too great an angle to the P.T.O. shaft. The operating angle of the P.T.O. shaft should not exceed 20°
Adiust the tractor hitch so that blower is level, resting on the shoes, with the cutting blade approximately 1/2" clear of the ground.
The Plow is equipped with two shear bolts to help reduce damage from foreign objects entering the machine. The first is a 3/8" × 2" Grade 5 Hardened Machine bolt in the P.T.O. shaft.
