Original 1974 New Idea Operator's Manual W-83 No. 633 Wagon TB9

See pics for condition.

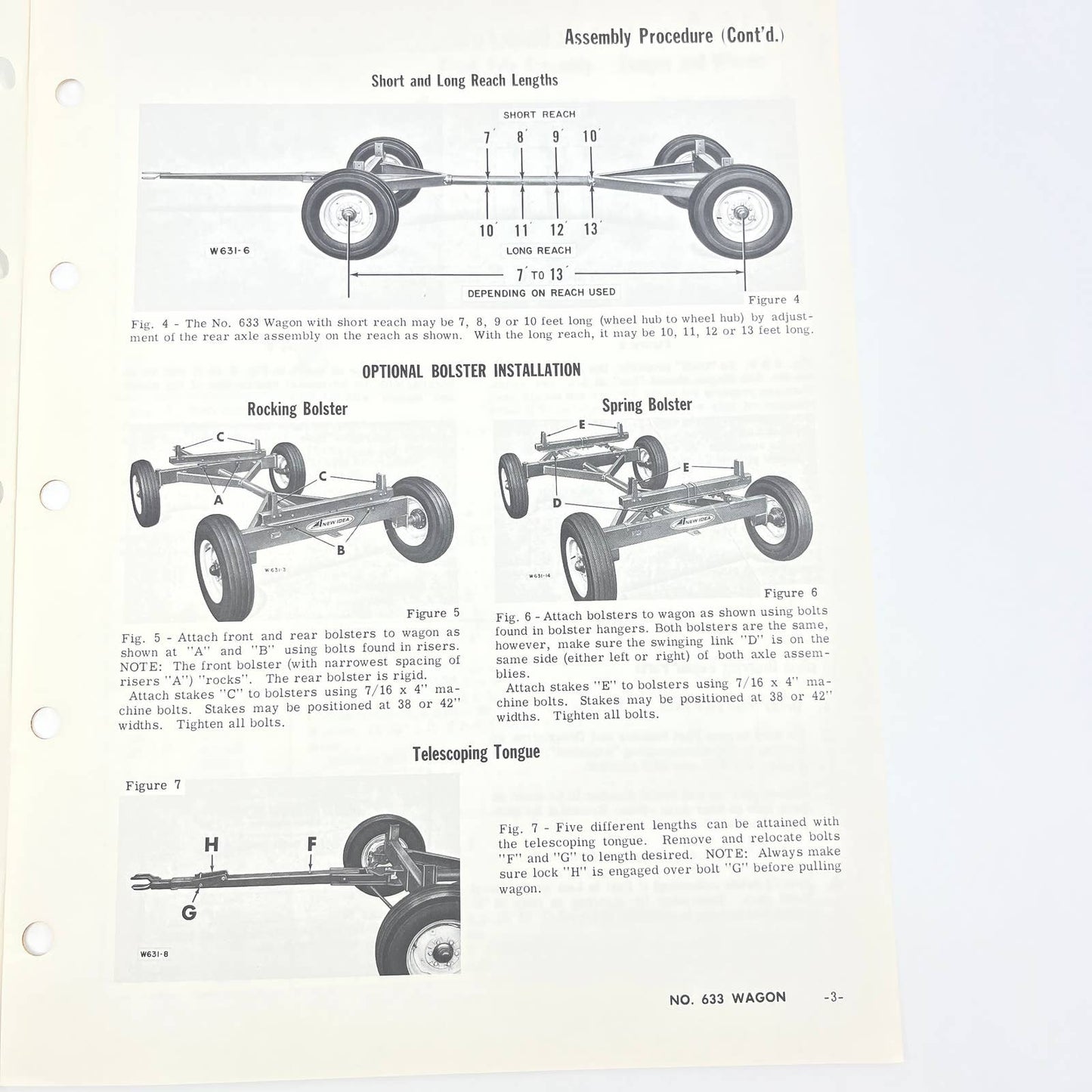

Original 1974 New Idea Operator's Manual W-83 No. 633 Wagon TB9

Short and Long Reach Lengths
SHORT REACH
7
8
9
W631-6
10°
11
12
13
LONG REACH
7' то 13
DEPENDING ON REACH USED
Figure 4
Fig. 4 - The No. 633 Wagon with short reach may be 7, 8, 9 or 10 feet long (wheel hub to wheel hub) by adjustment of the rear axle assembly on the reach as shown. With the long reach, it may be 10, 11, 12 or 13 feet long.
OPTIONAL BOLSTER INSTALLATION
Rocking Bolster
Spring Bolster
Figure 5
Fig. 5 - Attach front and rear bolsters to wagon as shown at "A" and "B" using bolts found in risers.
NOTE: The front bolster (with narrowest spacing of risers "A'*) "rocks". The rear bolster is rigid.
Attach stakes "C' to bolsters using 7/16 x 4" machine bolts. Stakes may be positioned at 38 or 42" widths. Tighten all bolts.
