Original 1974 New Idea No 717 Uni-Combine 703 704 705 706 Power Units Manual TB9

See pics for condition.

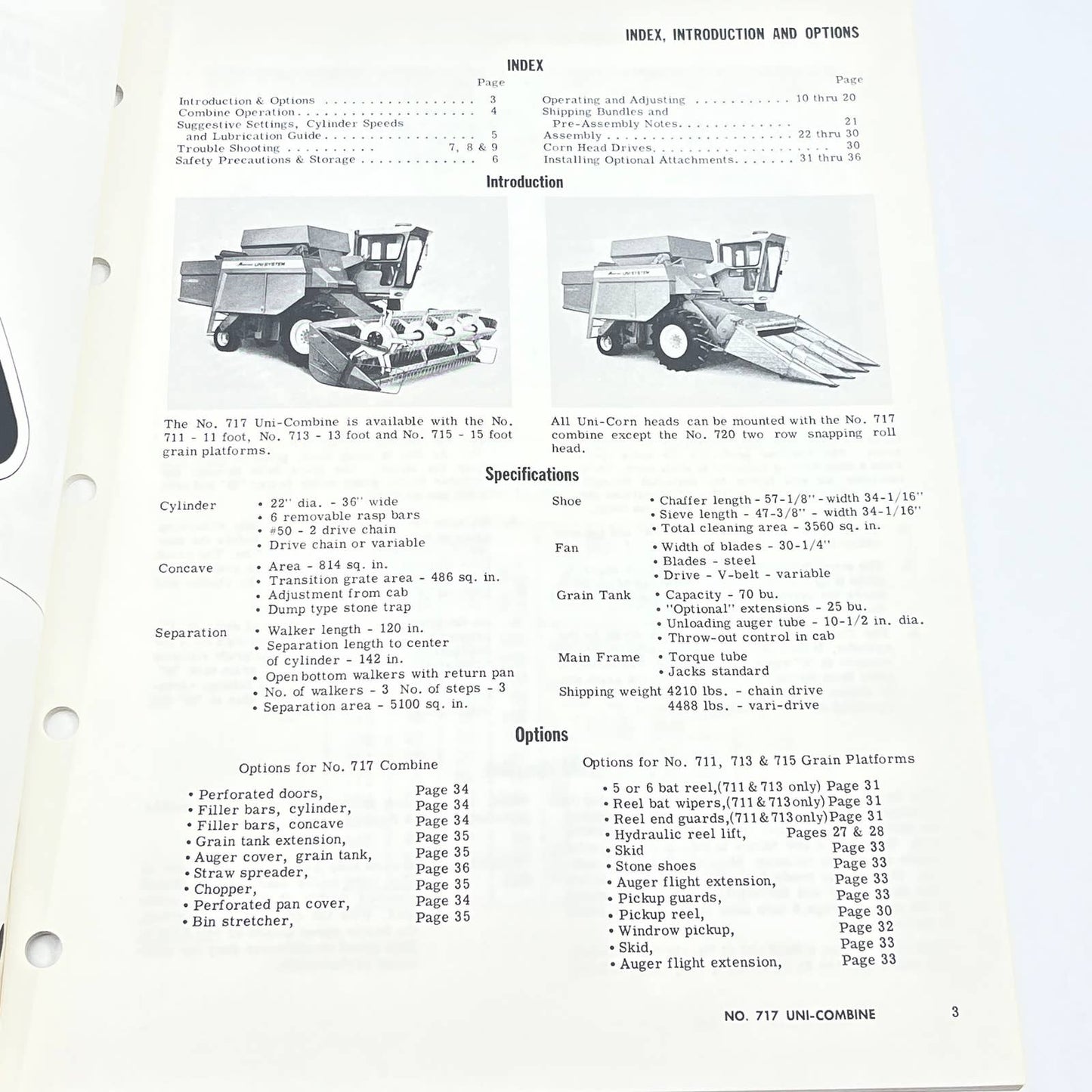

Original 1974 New Idea No. 717 Uni-Combine 703 704 705 706 Power Units Operator's Manual TB9

INDEX
Page
3
Introduction & Options
Combine Operation.
Suggestive Settings, Cylinder Speeds and Lubrication Guide Trouble Shooting
Safety Precautions & Storage
Operating and Adjusting
Shipping Bundles and
Pre-Assembly Notes
Assembly
Corn Head Drives
Installing Optional Attachments.
Introduction
INDEX, INTRODUCTION AND OPTIONS
Page
10 thru 20
21
22 thru 30
30
31 thru 36
The No. 717 Uni-Combine is available with the No.
711 - 11 foot, No. 713 - 13 foot and No. 715 - 15 foot grain platforms.
All Uni-Corn heads can be mounted with the No. 717 combine except the No. 720 two row snapping roll head.
Cylinder
Concave
Separation
Specifications
Shoe
• 22" dia. - 36 wide
• 6 removable rasp bars
• #50 - 2 drive chain
• Drive chain or variable
