See pics for condition.

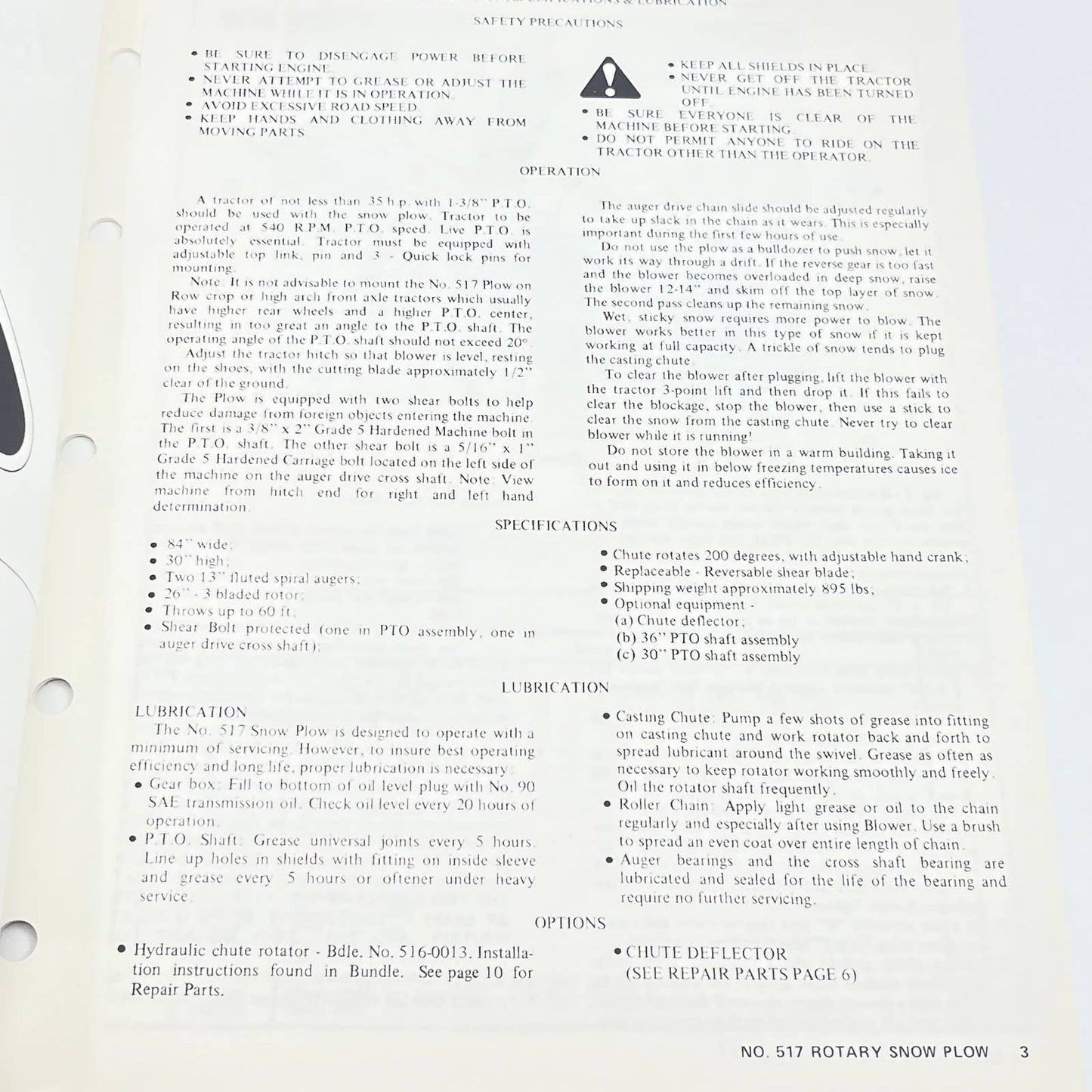

Original 1974 New Idea No. 517 Three Point Hitch 7" Rotary Snow Plow Operator's Manual TB9
A tractor of not less than 35 hp with 1-3/8" P.T.O. should be used with the snow plow. Tractor to be operated at 540 RPM. P.TO. speed. Live P.TO. is absolutely essential. Tractor must be equipped with adjustable top link, pin and 3 - Quick lock pins for mounting
Note It is not advisable to mount the No. S17 Plow on
Row crop or high arch front axle tractors which usually have higher rear wheels and a higher PTO. center, resulting in too great an angle to the P.T.O. shaft. The operating angle of the P.T.O. shaft should not exceed 20°
Adjust the tractor hitch so that blower is level, resting on the shoes, with the cutting blade approximatelv 1/2" clear of the ground.
The Plow is equipped with two shear bolts to help reduce damage from foreign objects entering the machine
The first is a 3/8" × 2" Grade 5 Hardened Machine bolt in the PT.O. shaft.
