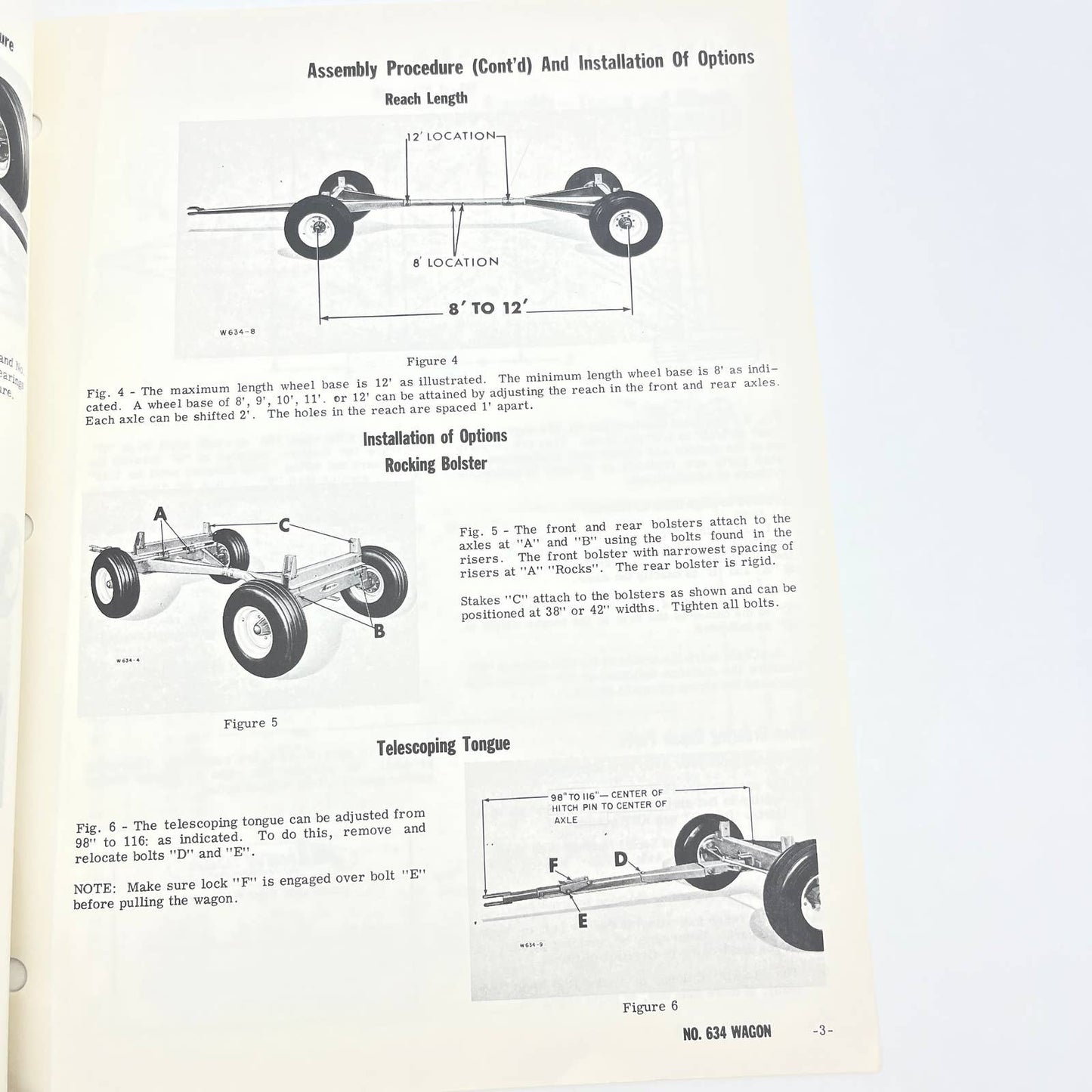

Assembly Procedure (Cont'd) And Installation Of Options
Reach Length
12' LOCATION.
8' LOCATION
8' TO 12'.
W634-8
India
Figure 4
Fig. 4 - The maximum length wheel base is 12' as illustrated. The minimum length wheel base is 8' as indi-cated. A wheel base of 8', 9', 10', 11'. or 12' can be attained by adjusting the reach in the front and rear axles.
Each axle can be shifted 2'. The holes in the reach are spaced 1' apart.
Installation of Options
Rocking Bolster
Fig. 5 - The front and rear bolsters attach to the axles at "A" and "B" using the bolts found in the risers. The front bolster with narrowest spacing of risers at "A" "Rocks". The rear bolster is rigid
Stakes "C" attach to the bolsters as shown and can be positioned at 38" or 42" widths.
Tighten all bolts.
Figure 5
Telescoping Tongue
