Original 1969 New Idea Operator's Manual P-199 No. 308 Mounted Snapper TB9

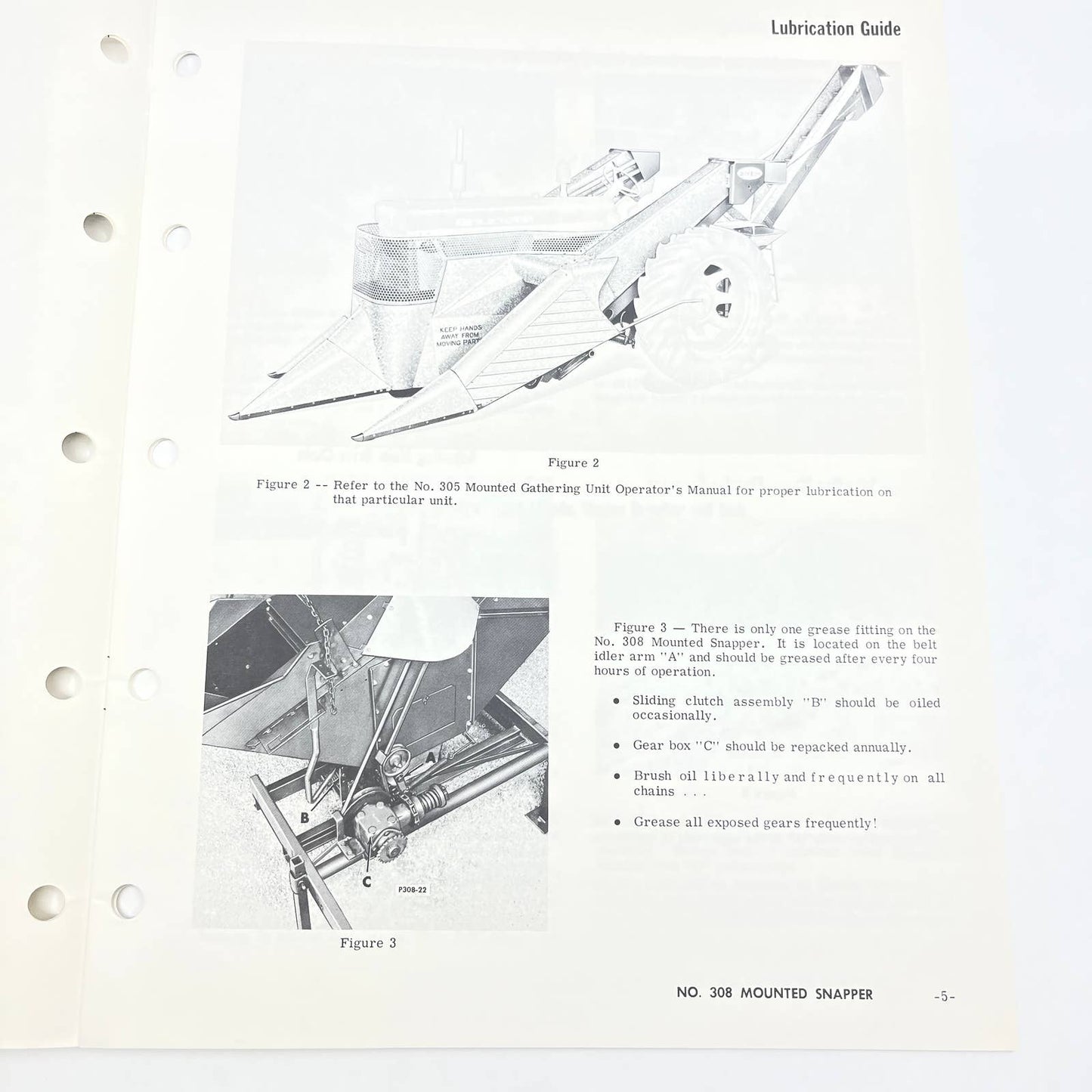

Figure 2
Figure 2-- Refer to the No. 305 Mounted Gathering Unit Operator's Manual for proper lubrication on
that particular unit.
Figure 3 - There is only one grease fitting on the No. 308 Mounted Snapper. It is located on the belt idler arm "A" and should be greased after every four hours of operation.
• Sliding clutch assembly "B' should be oiled occasionally.
• Gear box "C" should be repacked annually.
• Brush oil liberally and frequently on all chains
• Grease all exposed gears frequently!
C
P308-22
Figure 3
NO. 308 MOUNTED SNAPPER
