Original 1966 New Idea Instructions & Repair Parts List W-75 for 628B Wagon TB9

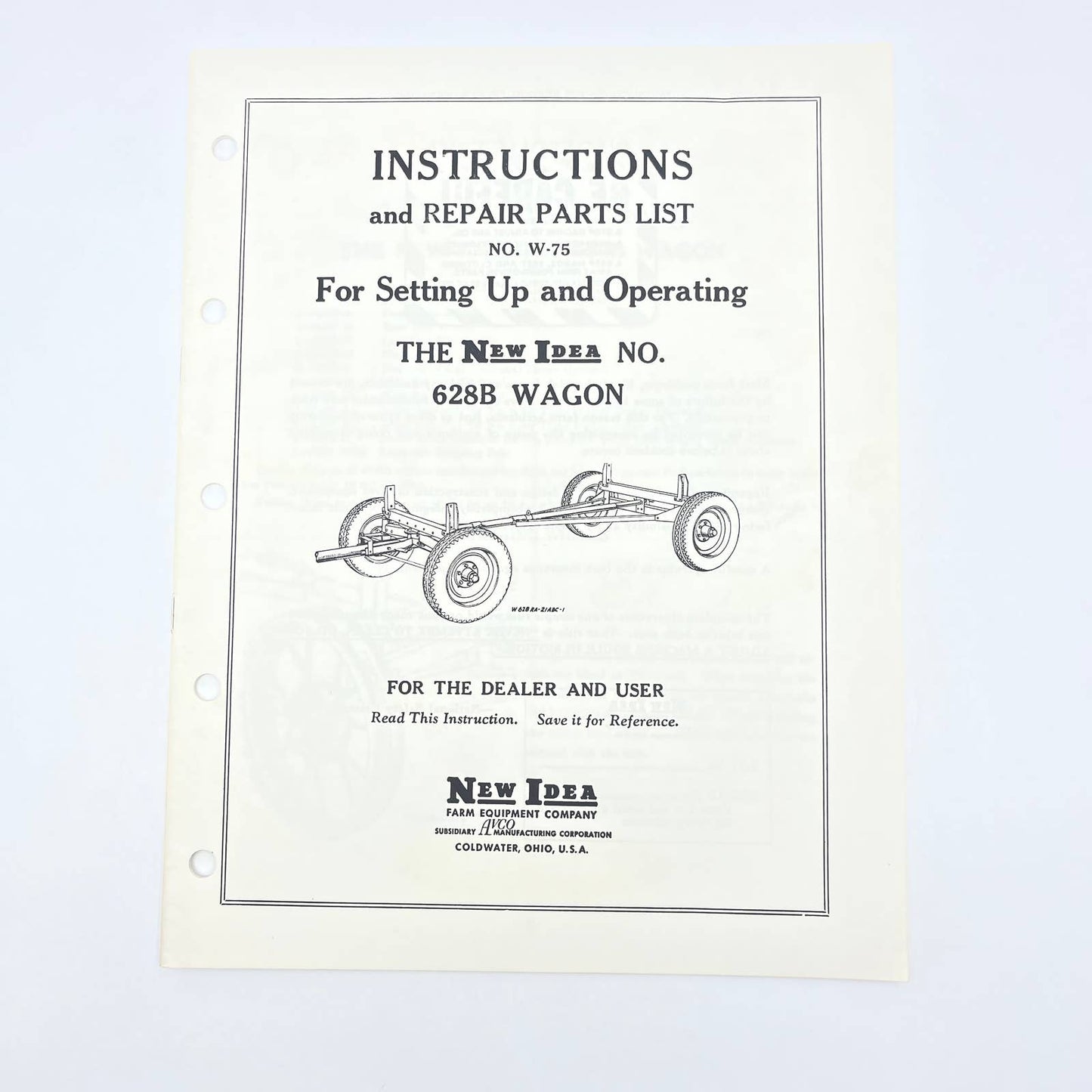

INSTRUCTIONS
FOR
Setting Up and Operating
THE NEW IDEA NO. 628B WAGON
SHIPPING BUNDLES
1-628B-A
Front Axle Bundle
1_628B-B
Rear Axle Bundle
1-628B-C
Coupling Pole Bundle
1_628B-D
Wagon Pole Bundle
4_628B-E
Disc Wheel with [without ] Tires Optional
1-628B-G
Stub TongueOptional
4_628B-H
Steel Wheels--Optional
1_628B-J
Lever Assembly for No. 8 Air Tired Wagon Brake Optional
1_628B-K
Lever Assembly for No. 9 Air Tired Wagon Brake Optional
1_628B-L
Brake Drum Assembly for No. 8 and No. 9 Air Tired Wagon Brake Optional
1-0237 WCA Extension Coupling Pole
Cut the wires on all of the various bundles and lay them out in such a manner that parts can be easily located when you are ready to attach them.
Follow these instructions carefully so as to get the machine properly set up and adjusted.
ATTACHING WHEELS

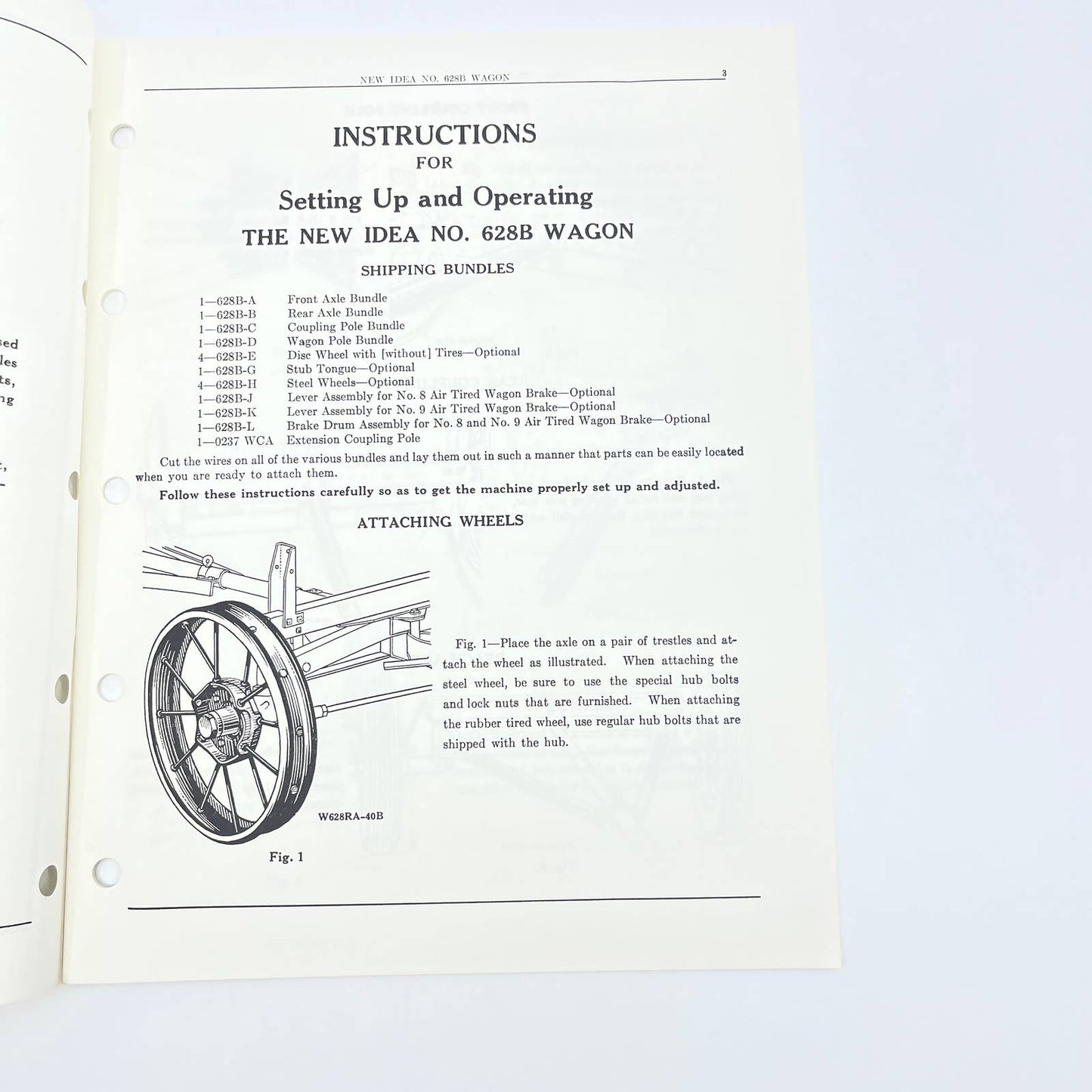

Fig. 1-Place the axle on a pair of trestles and attach the wheel as illustrated.
