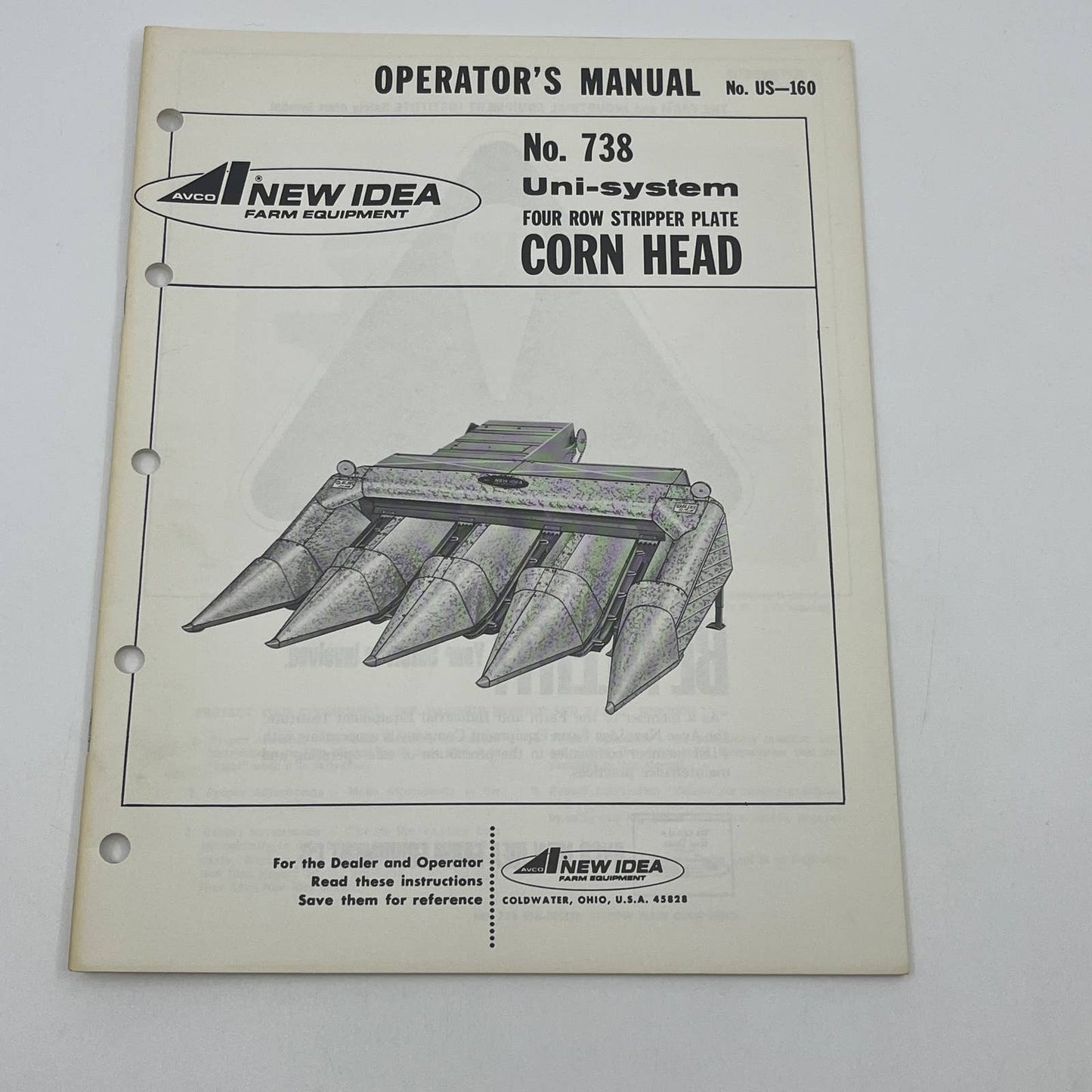

New Idea 738 Uni-system Four Row Stripper Plate Corn Head Operator's Manual TB9

See pics for condition.

Original New Idea 738 Uni-system Four Row Stripper Plate Corn Head Operator's Manual TB9

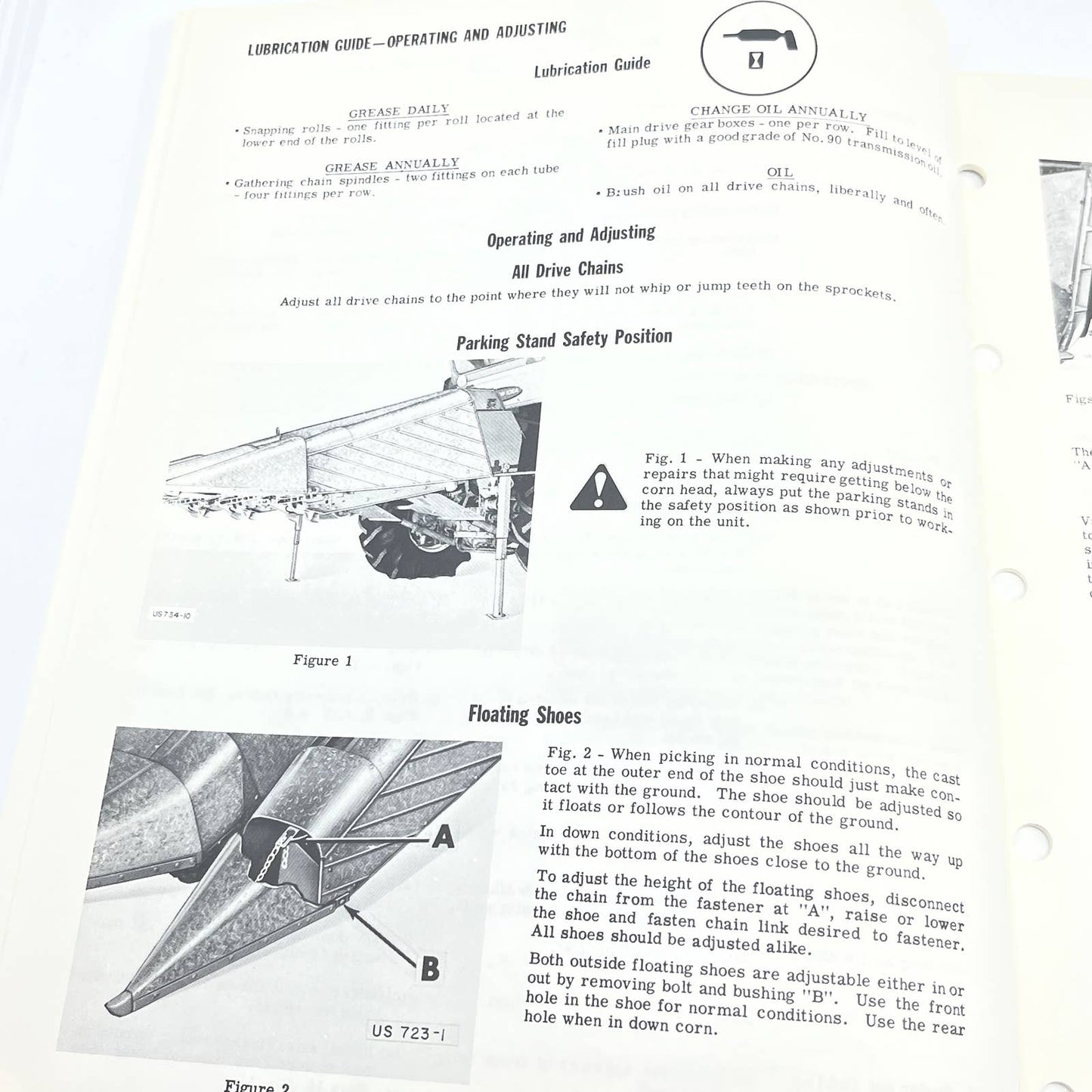

LUBRICATION GUIDE -OPERATING AND ADJUSTING
Lubrication Guide
GREASE DAILY
• Snapping rolls - one fitting per roll located at the lower end of the rolls.
GREASE ANNUALLY
• Gathering chain spindles - two fittings on each tube
- four fittings per row.
CHANGE OIL ANNUALLY
Mai dr with a good grade of No. 10 transmission.,,
OIL
• Brush oll on all arive chains, liberally and old,
Operating and Adjusting
All Drive Chains
Adiust all drive chains to the point where they will not whip or jump teeth on the sprockets.
Parking Stand Safety Position
Fig. 1 - When making any adjustments or repairs that might require getting below the corn head, always put the parking stands in the safety position as shown prior to work. ing on the unit.
US734-10
Figure 1
A
B
US 723-1
Floating Shoes
