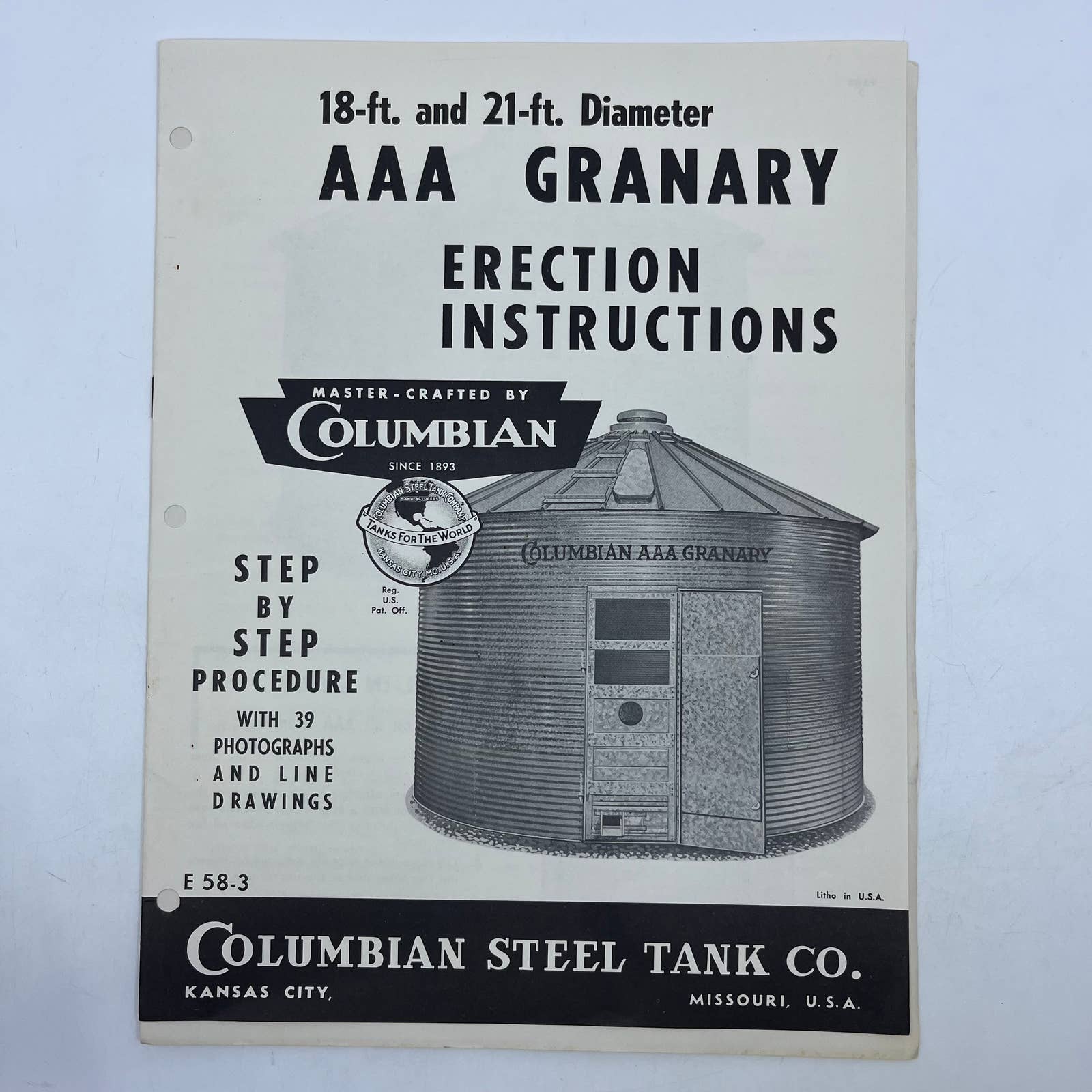

1950s Columbian AAA Granary Manual Assembly Instructions TH8
1950s Columbian AAA Granary Manual Assembly Instructions TH8
Regular price
$27.00 USD
Regular price
Sale price
$27.00 USD
Unit price
per
Tax included.
Couldn't load pickup availability
See Pics for condition.
1950s Columbian AAA Granary Manual Assembly Instructions TH8

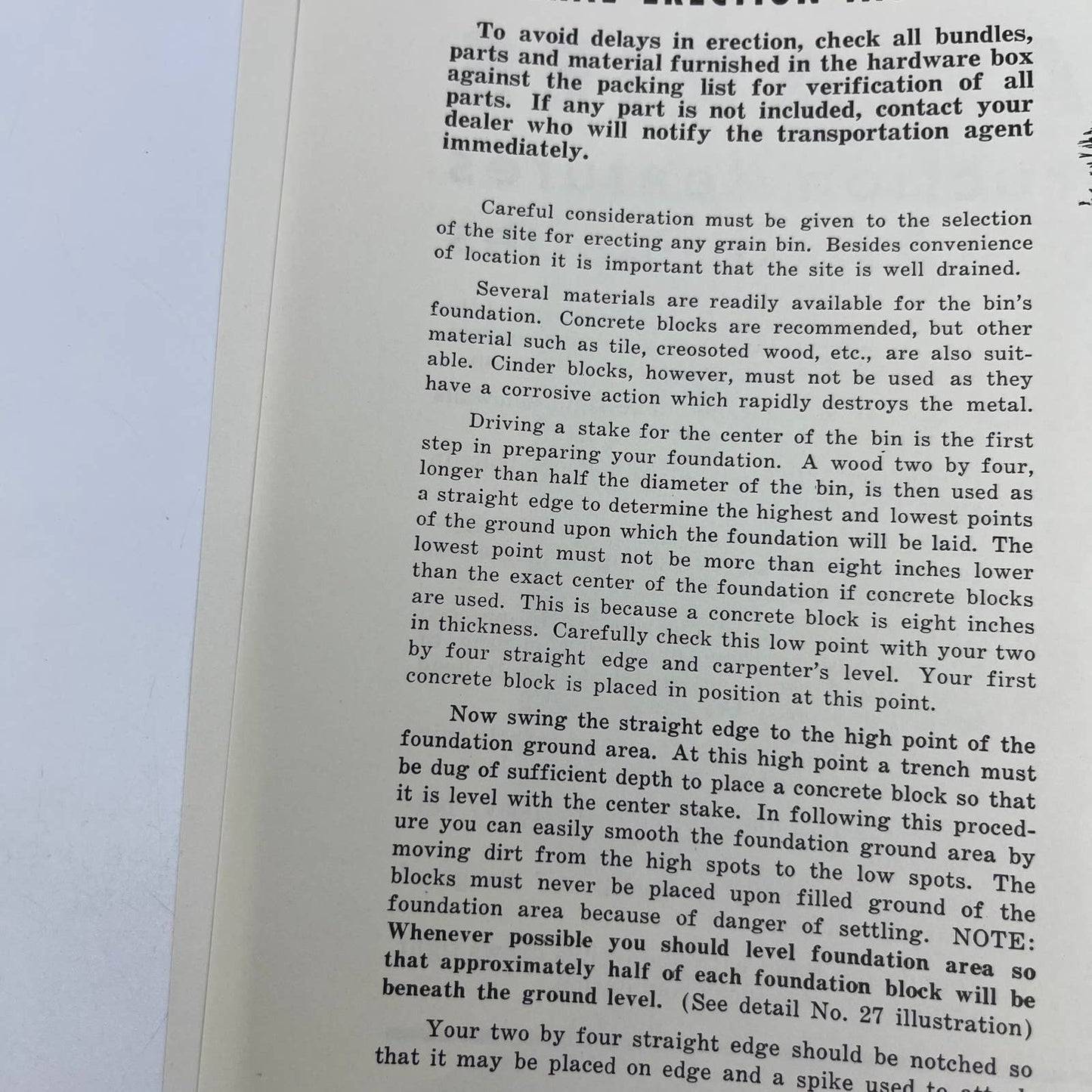

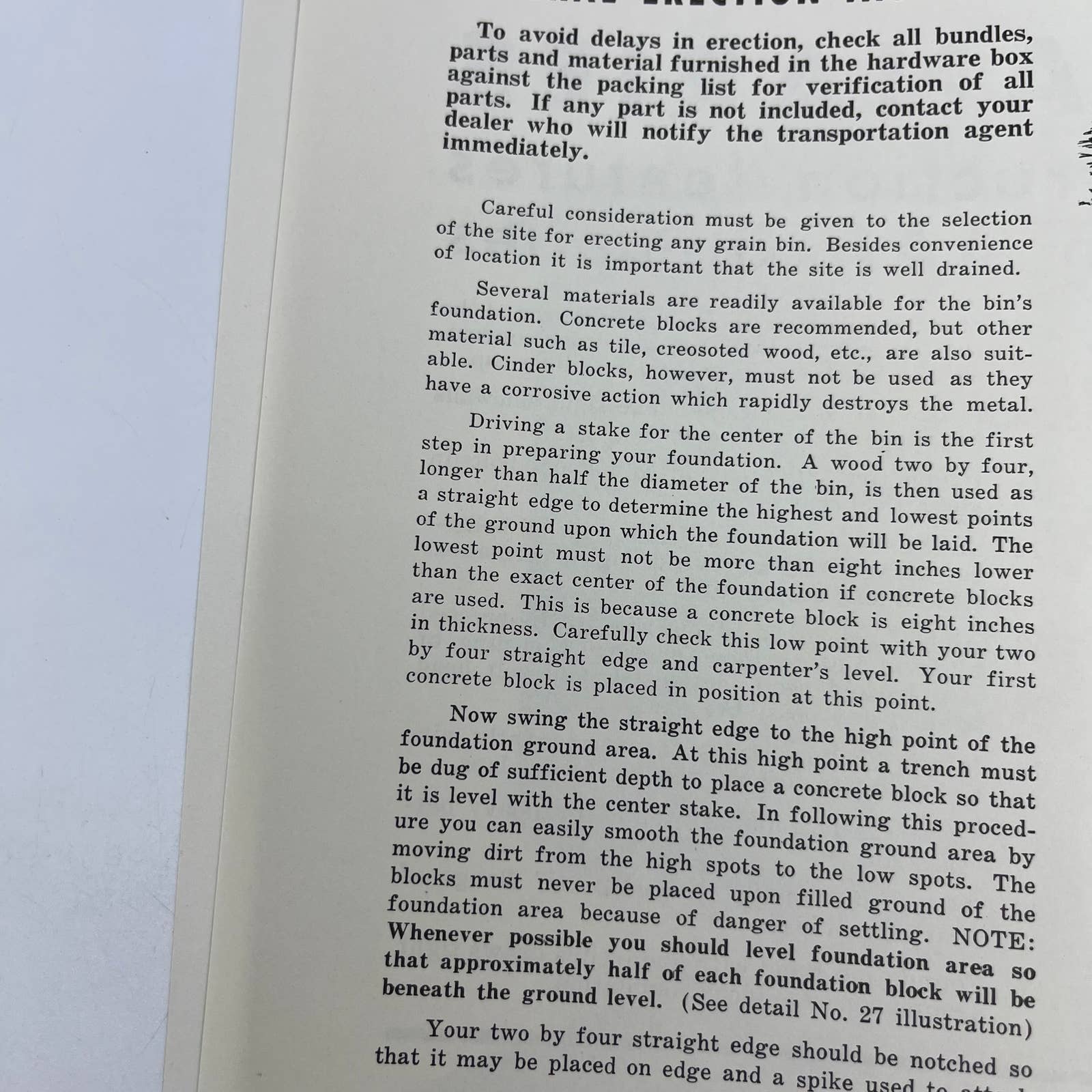

Careful consideration must be given to the selection of the site for erecting any grain bin. Besides convenience of location it is important that the site is well drained.
Several materials are readily available for the bin's foundation. Concrete blocks are recommended, but other material such as tile, creosoted wood, etc., are also suit-able. Cinder blocks, however, must not be used as they have a corrosive action which rapidly destroys the metal.
Driving a stake for the center of the bin is the first step in preparing your foundation. A wood two by four, longer than half the diameter of the bin, is then used as a straight edge to determine the highest and lowest points of the ground upon which the foundation will be laid. The lowest point must not be more than eight inches lower than the exact center of the foundation if concrete blocks are used.
1950s Columbian AAA Granary Manual Assembly Instructions TH8
Careful consideration must be given to the selection of the site for erecting any grain bin. Besides convenience of location it is important that the site is well drained.
Several materials are readily available for the bin's foundation. Concrete blocks are recommended, but other material such as tile, creosoted wood, etc., are also suit-able. Cinder blocks, however, must not be used as they have a corrosive action which rapidly destroys the metal.
Driving a stake for the center of the bin is the first step in preparing your foundation. A wood two by four, longer than half the diameter of the bin, is then used as a straight edge to determine the highest and lowest points of the ground upon which the foundation will be laid. The lowest point must not be more than eight inches lower than the exact center of the foundation if concrete blocks are used.
